✔ 130KV radiation source;

✔ high resolution digital flat panel detector(FPD);

✔ system control+reconstruction+visualization+image analysis;

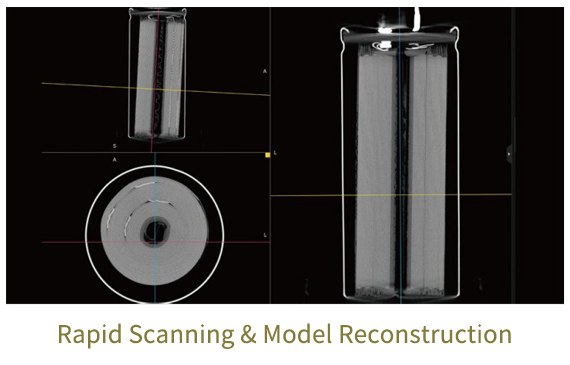

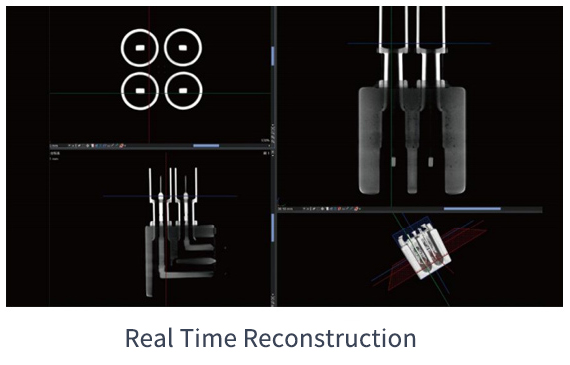

✔ real-time reconstruction:scanning and reconstruction at the same time

✔ fast scanning to automate the reconstruction and loading process

✔ forward and reverse 360°;

✔ Workbench 300mm×300mm×200mm;

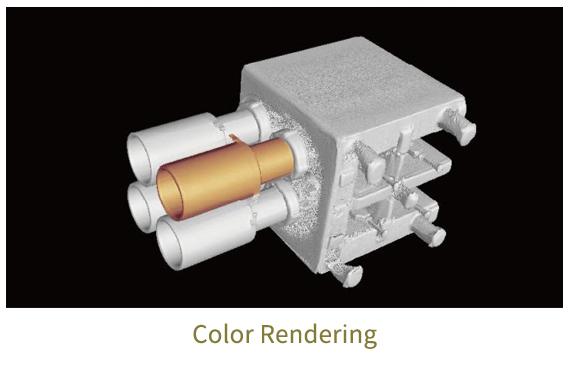

✔ more intuitive display of defective defects through color rendering;

✔ multi-type measurement function(point,line,circle,angle,polygon,etc.)

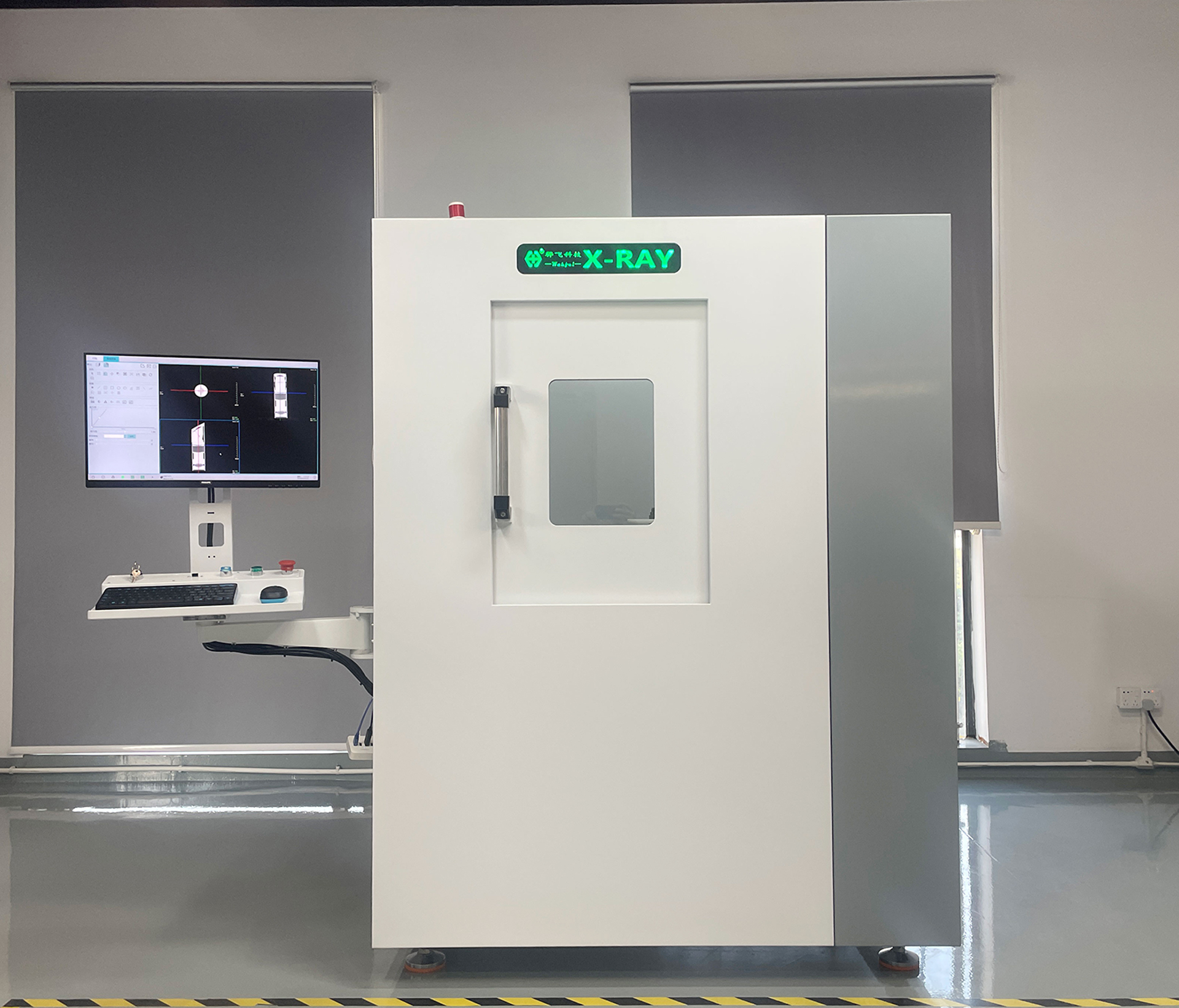

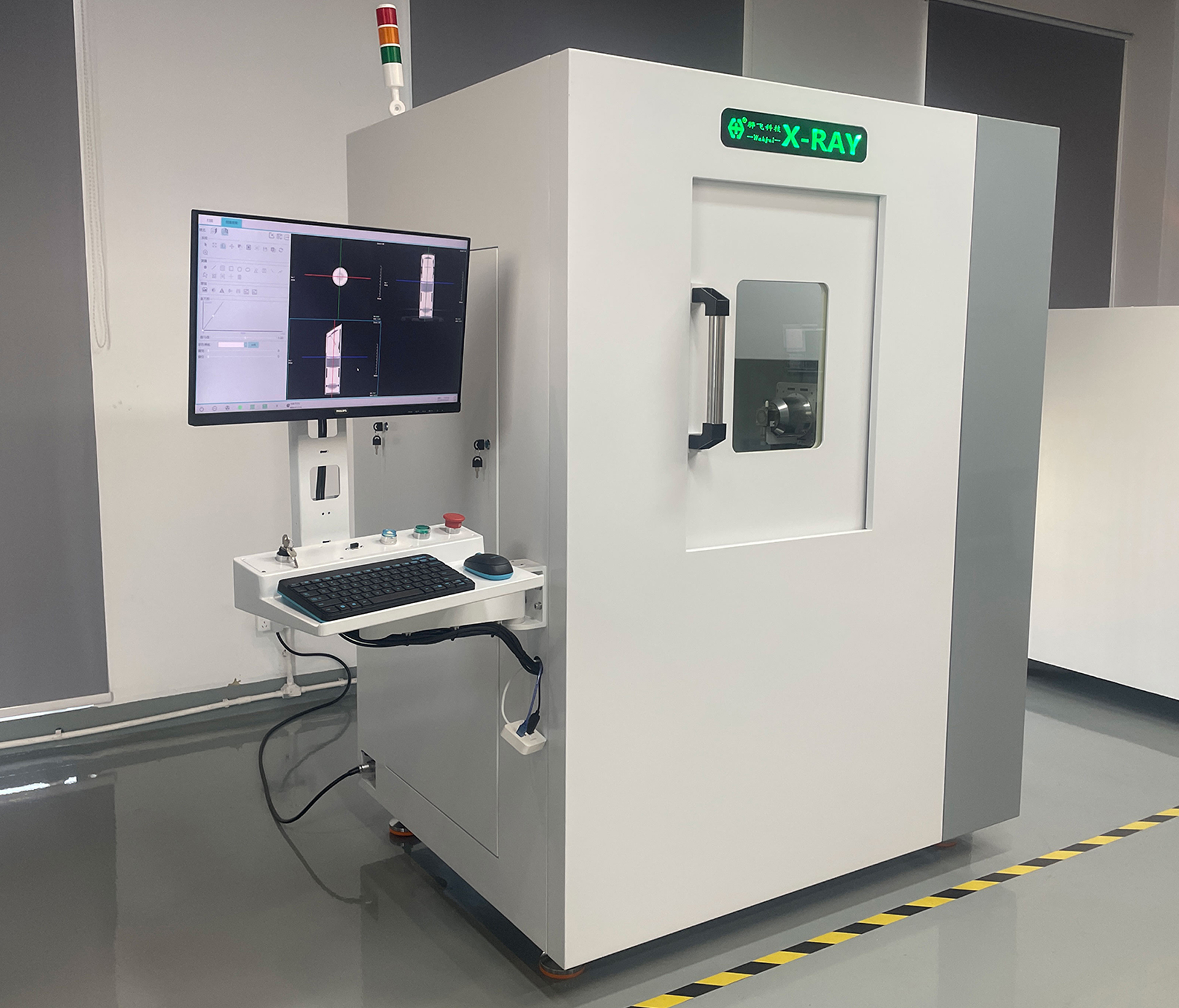

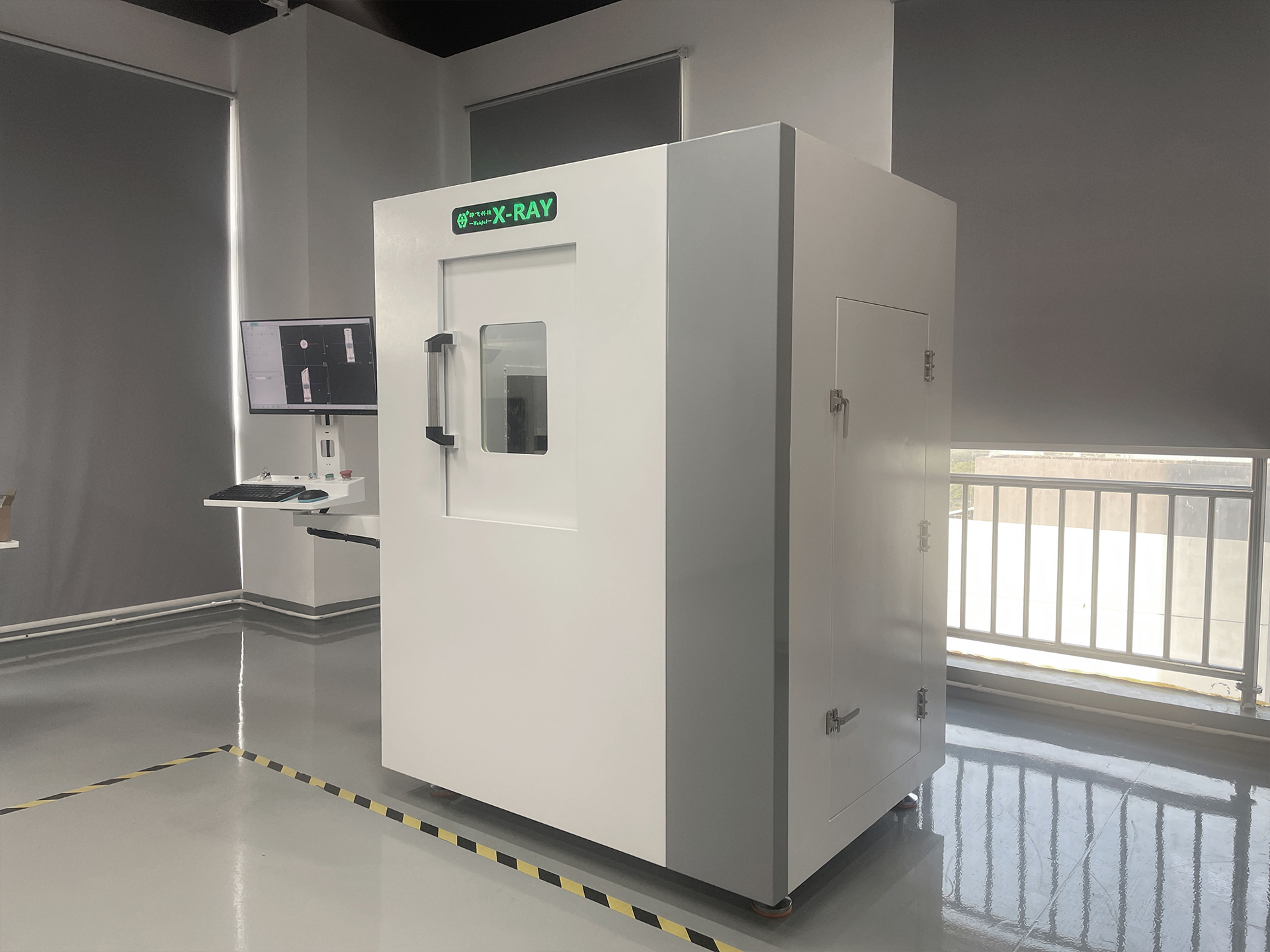

HF-XT1000 overview

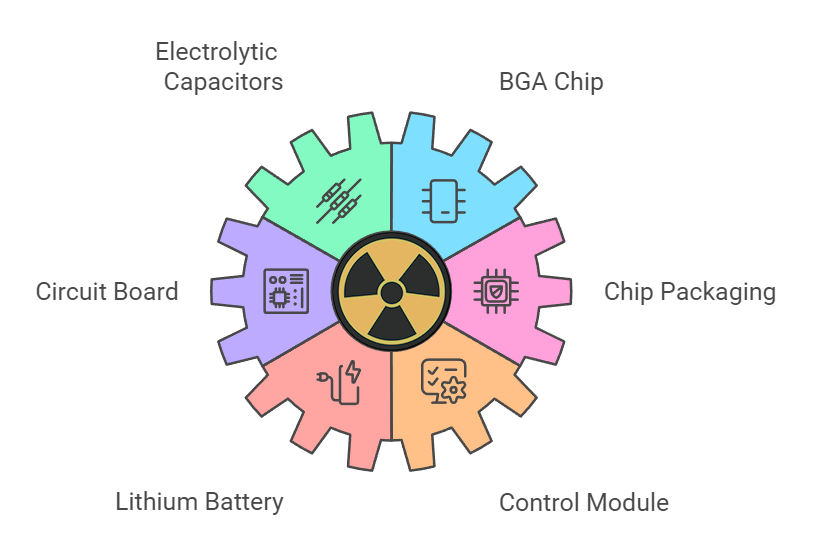

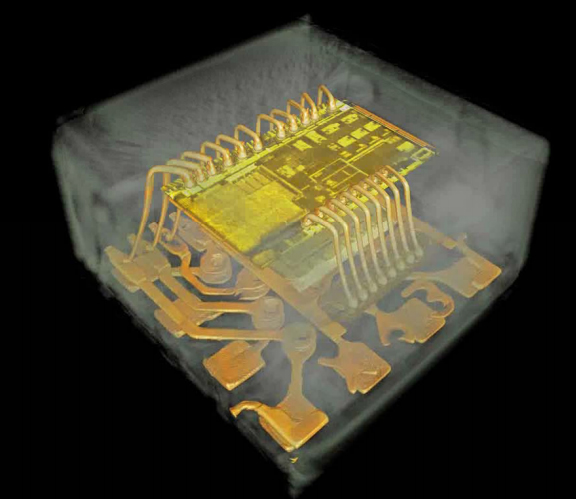

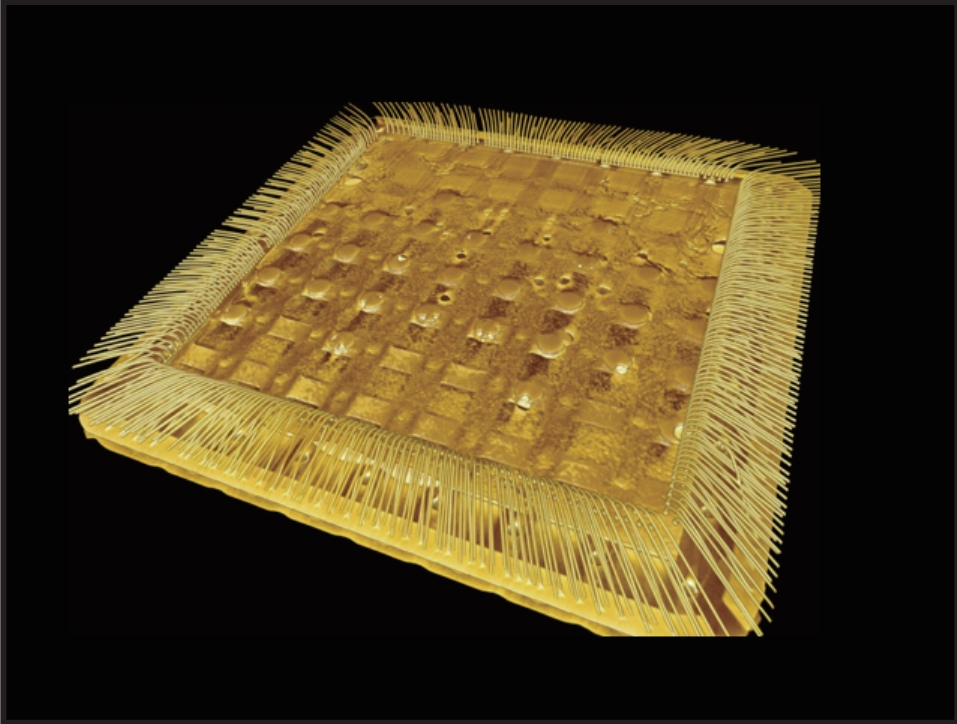

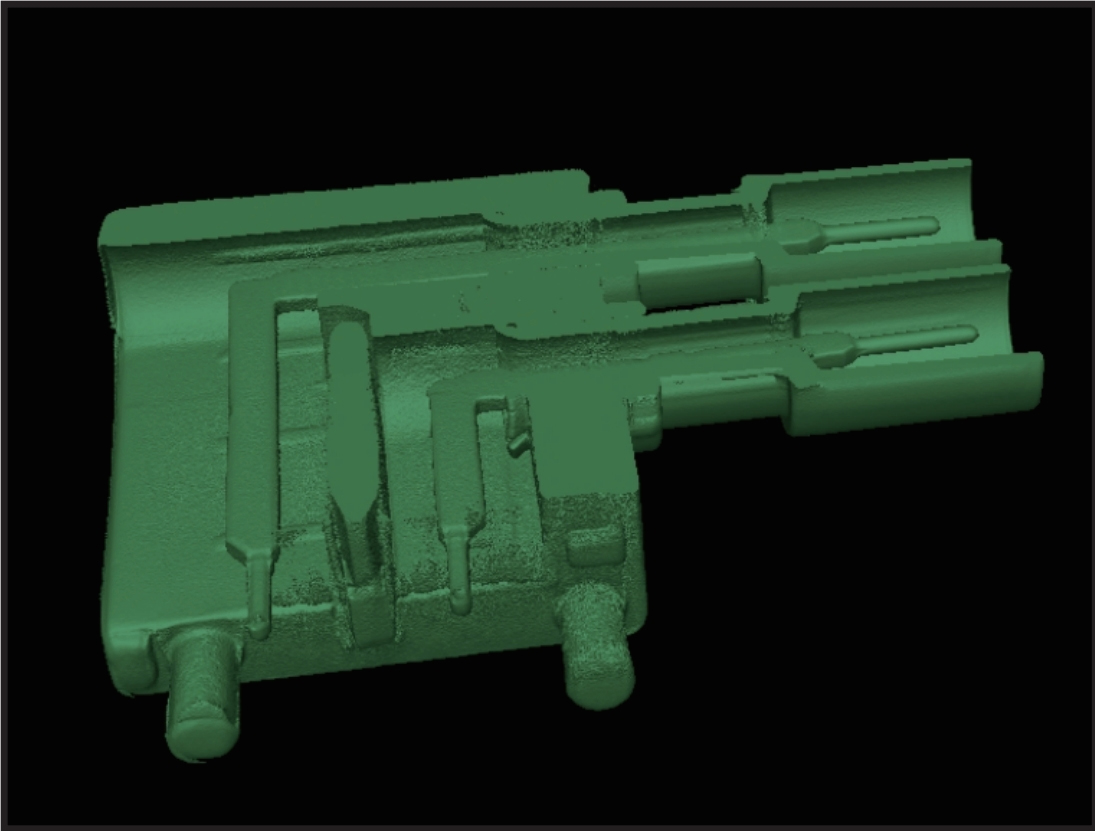

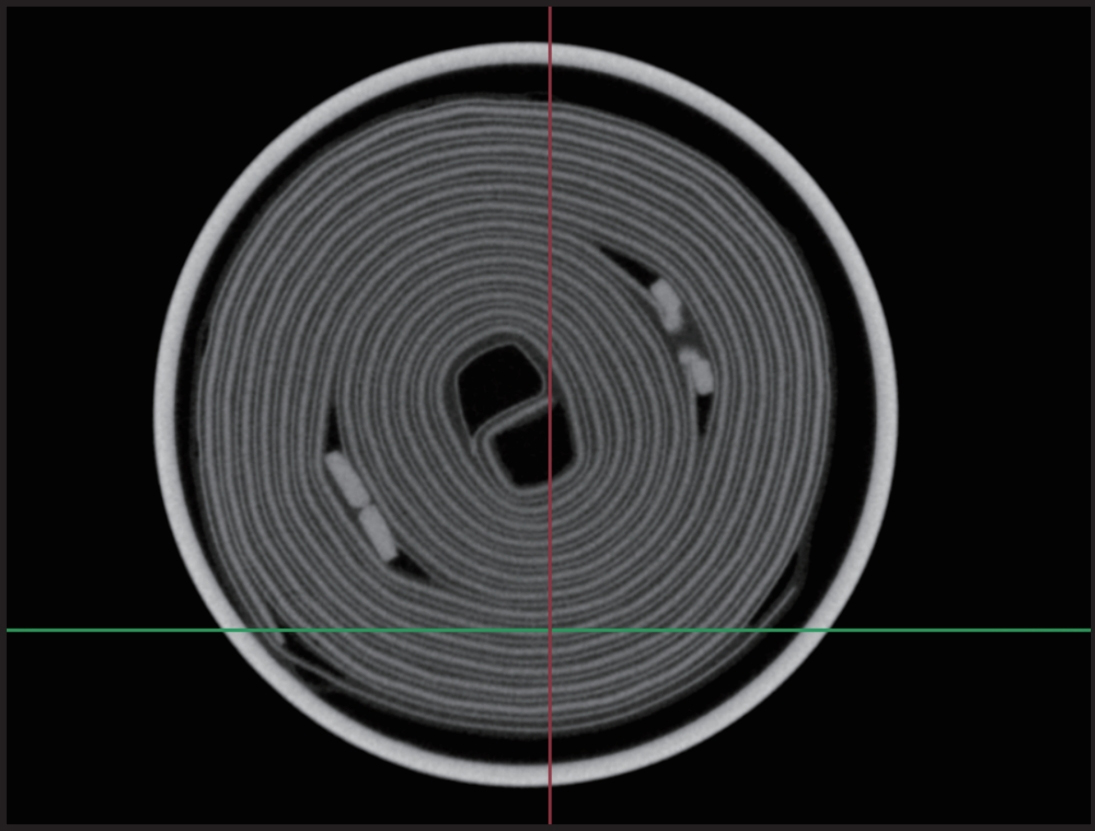

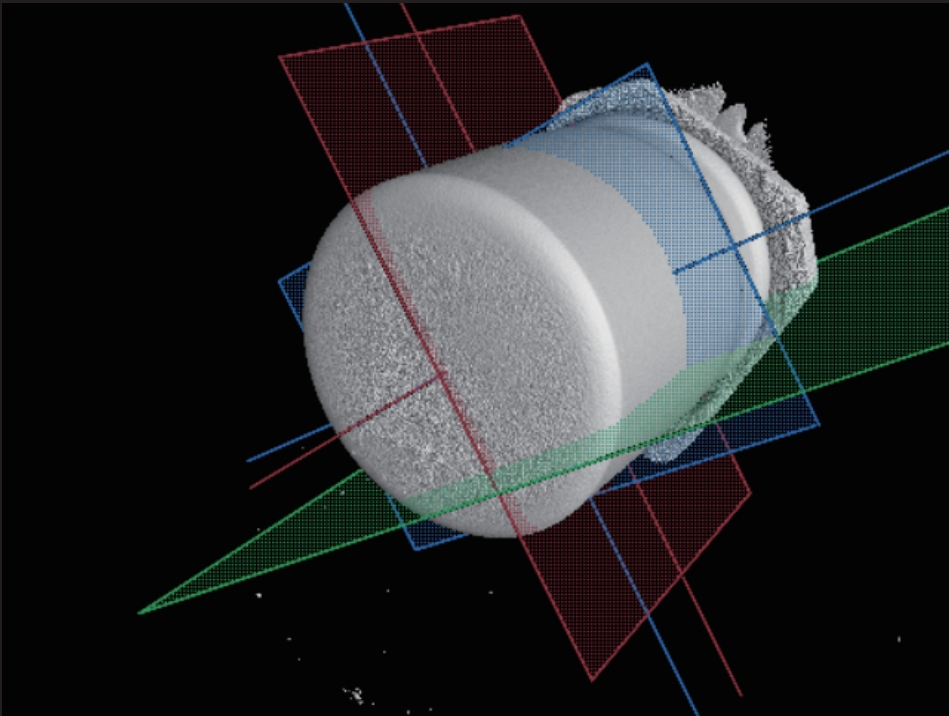

Application Range

  • X-ray Tube
    X-ray Tube Type Microfocus Sealed Tube

    Maximum

    X-ray Tube Voltage

    		 130 kV

    Maximum

    X-ray Tube Current

    		 300 μA
    X-ray Tube Focal Spot Size 5 μm
    X-ray Tube Target Power 39 W
    Detector
    Detector Type

    High-Resolution Digital

    Flat Panel Detector (FPD)
    Detector Resolution 5.8 LP/mm
    Pixel Matrix 1536 x 1536 pixels
    Imaging Area/Field of View 130 x 130 mm
    Frame Rate 20 fps
    A/D Conversion Bit Depth 16 bit
    Stage
    Stage Size/Dimensions 300 x 300 x 200 mm
    Inspection Dimension 100 x 100 x 150 mm

    Maximum Stage

     Load Capacity/Weight

    		 15 kg
    Radiation Safety

    X-ray Leakage

    /Radiation Leakage

    		 < 1 μSv/h

  •

    Safety Interlock Function

    Door Safety Interlock and Fail-Safe Mechanisms:

    X-ray emission cannot be initiated unless doors are fully closed and locked.

    Front access door automatically locks when X-ray is in operation.

    Forced door opening triggers immediate X-ray shutdown through power cut-off safety circuit.

    Software Features

    Proprietary multi-functional image processing system

    Real-time bilingual interface (instant Chinese/English switching)

    Three-tier access control:

    Administrator

    Engineer

    Operator

    Core Functions:

    System control

    Image reconstruction

    Visualization

    Image analysis

    Advanced Features:

    Comprehensive measurement tools:

    Point measurement

    Line measurement

    Circle measurement

    Angle measurement

    Arc measurement

    Rectangle measurement

    Enhanced defect visualization through color rendering

    Real-time reconstruction during scanning
