√ 90kV X-ray source;
√ High-resolution flat panel detector (FPD);
√ High-resolution imaging system one-button navigation;
√ Sample stage size: 500mm×500mm;
√ In-house developed multi-functional image processing system;
√ Multi-point CNC automated positioning function;
√ Auxiliary manual marking of NG/OK positions in different colors.

HF-S80 overview

Application Range

  • PCBA - QFN Soldering Inspection

    PCBA - BGA Soldering Inspection

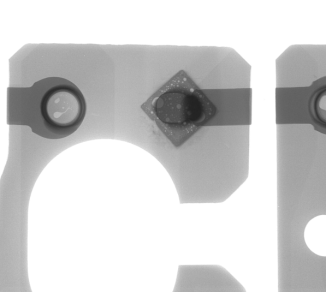

    Semiconductor Packaging X-ray Inspection

    Semiconductor Packaging X-ray Inspection

    Semiconductor Package Inspection

    Lithium Battery Inspection

    Capacitance Inspection

    Wire Connectors

    LED

    Diamond

    Radiator Hose

    LED Testing

  • The Project

    Note

    		 Quantity

    Microfocal ray source

    Installed on the device

    		 1

    FPD

    Installed on the device

    		 1

    The FPD data line

    Installed on the device

    		 1

    X ray device power supply cable

    Installed on the device

    		 1

    X light control cable

    Installed on the device

    		 1

    Load table

    Installed on the device

    		 1

    Motor control system

    Installed on the device

    		 2

    PC(includes power cables)

    Installed on the device

    		 1

    The Mouse

    Installed on the device

    		 1

    The Keyboard

    Installed on the device

    		 1

    XRaySystem image processing software

    Installed on the device

    		 1

    Operating manual

    Random distribution

    		 1

    A 22-inch display

    Installed on the device

    		 1

    AC 220V dedicated power cable

    Random distribution

    		 1

    Steady the pressure of the power supply

    Random distribution

    		 1

  • The HF-P100 series of technical parameters

    Dimensions

    2150mm(wide) × 1050mm(deep)

    × 1460mm (height)

    Weight

    1600KG

    Working environment

    Temperature:0°C-40°C

    Humidity:30-70RH
    Voltage

    220VAC,50/60Hz

    Power supply

    1.3KW

    Imager

    High-resolution FPD

    Imager resolution

    10.1LP/mm/5.0LP/mm

    FPD Sport

    285mm
    Amoom fication

    220 ×

    Workbench size

    330mm × 426mm

    X-light tube type

    Close closure

    Maximum voltage of the X- -optical tube

    90KV

    Maximum current of the X-optical tube

    0.2mA

    Optical tube target power

    8W

    Image processing software

    X-Ray System multi-function image

    processing system

    (independently developed)

    Security

    <1&micro; S v /hr
