✔ Automated Barcode/QR Code Reading (if applicable)

✔ Automated X-ray Inspection

✔ Automated Measurement/Metrology

✔ Automated NG Marking/Tagging

✔ Product Inspection Area:2000mm*550mm*40mm

✔ Rail-Based Conveyor/ln-LineConveyor System

✔ Enables hiah-throughput automated in-line full X-ray inspection on production lines

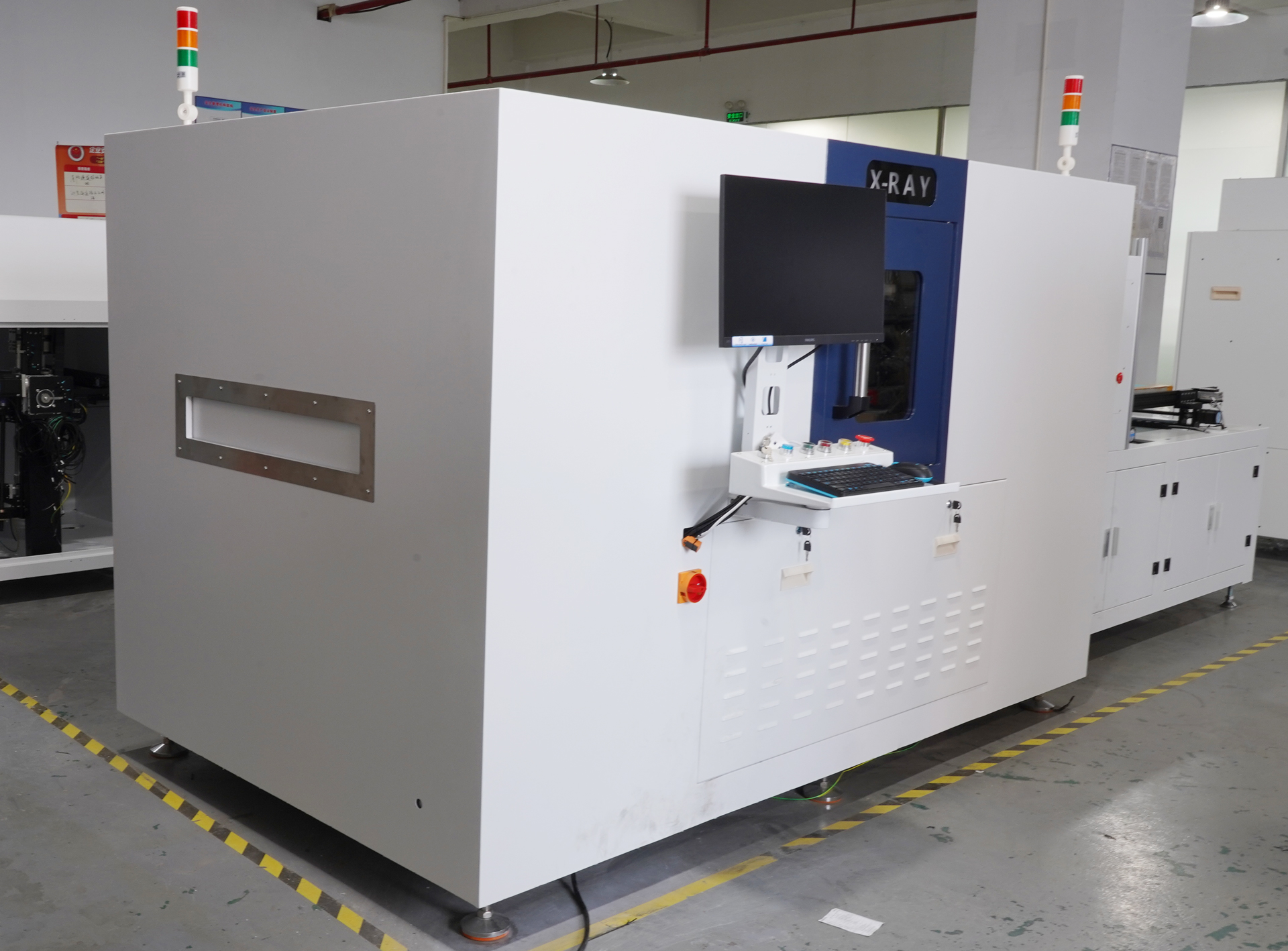

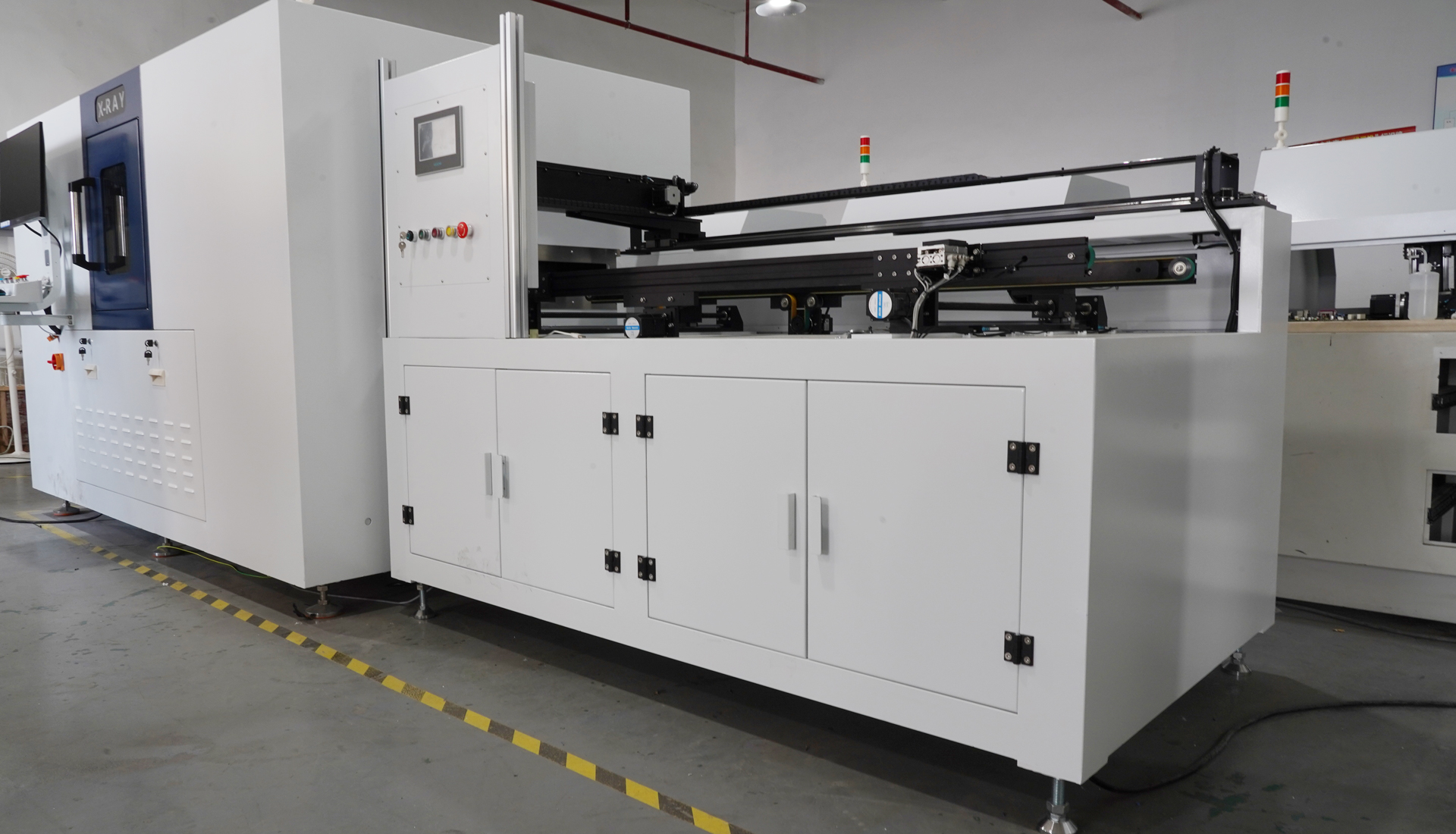

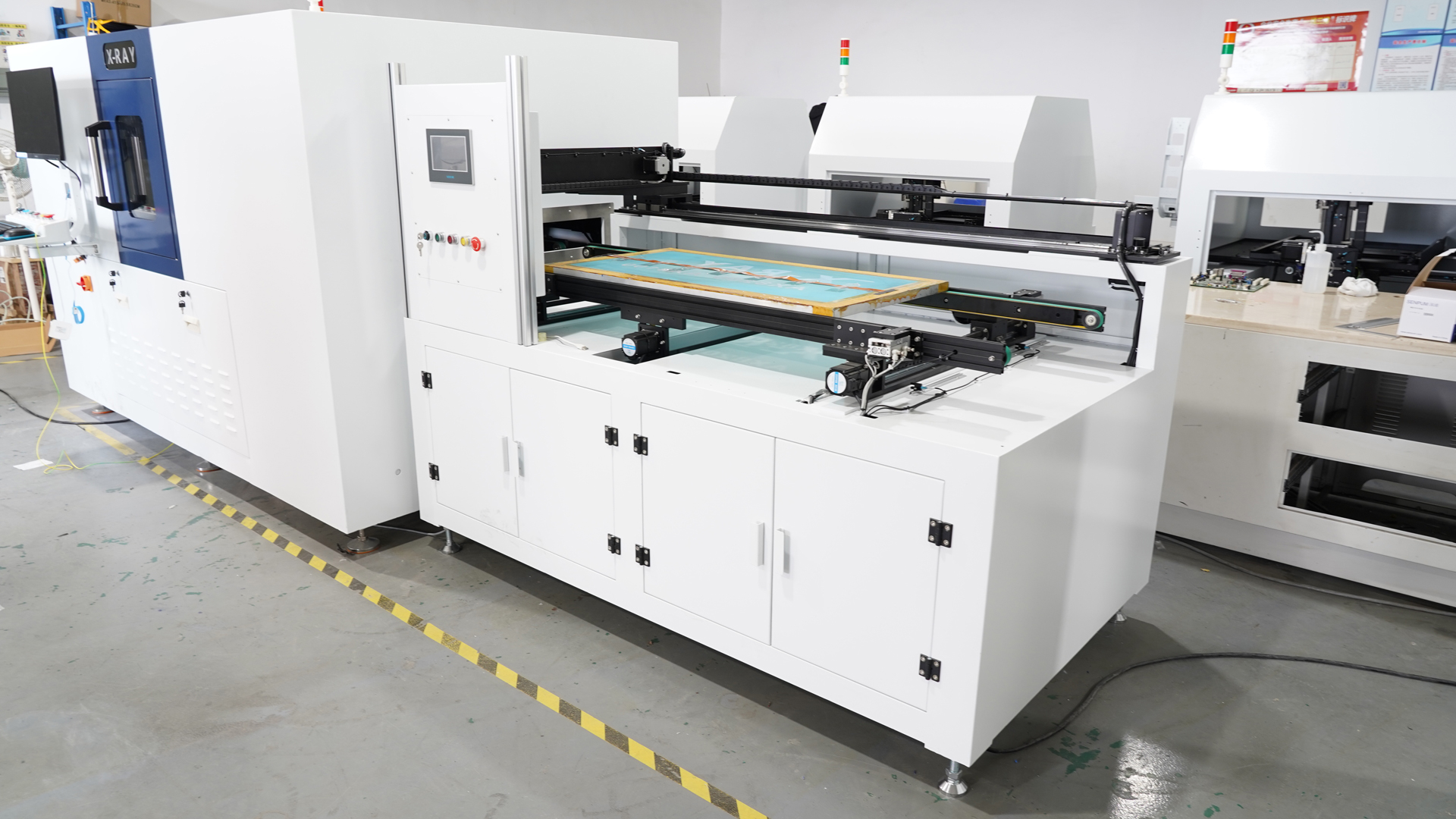

HF-Lx1500 overview

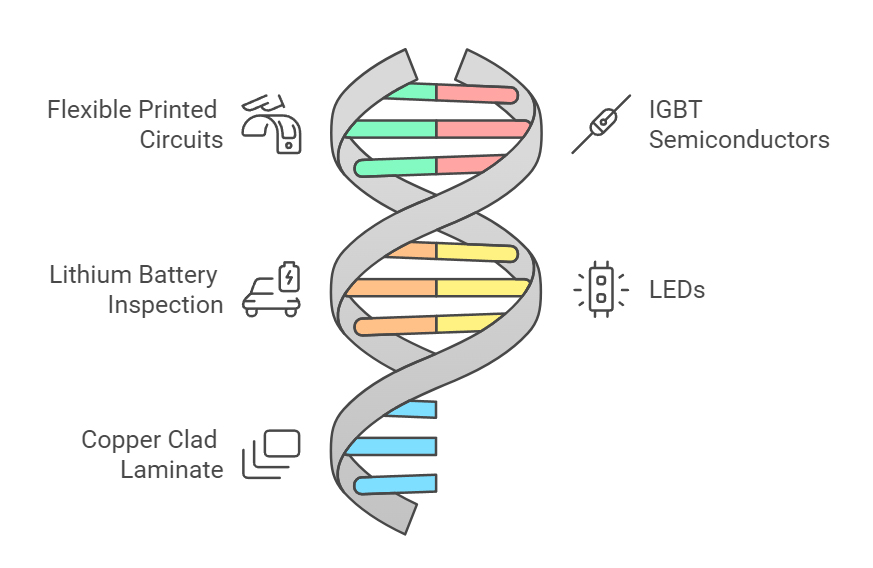

Application Range

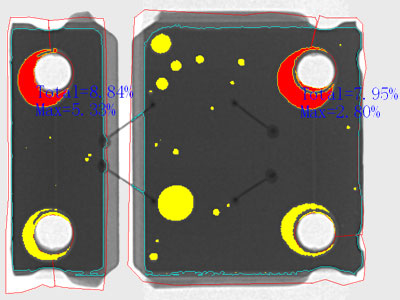

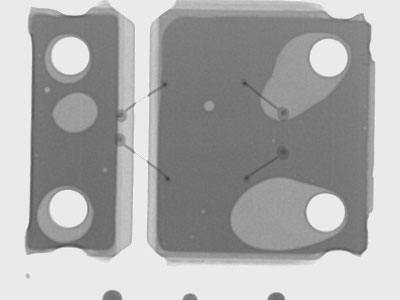

  • X-ray-FPC-image

    FPC Inspection

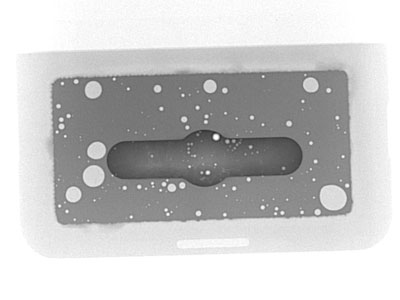

    X-ray inspection of new energy nickel strips tabs

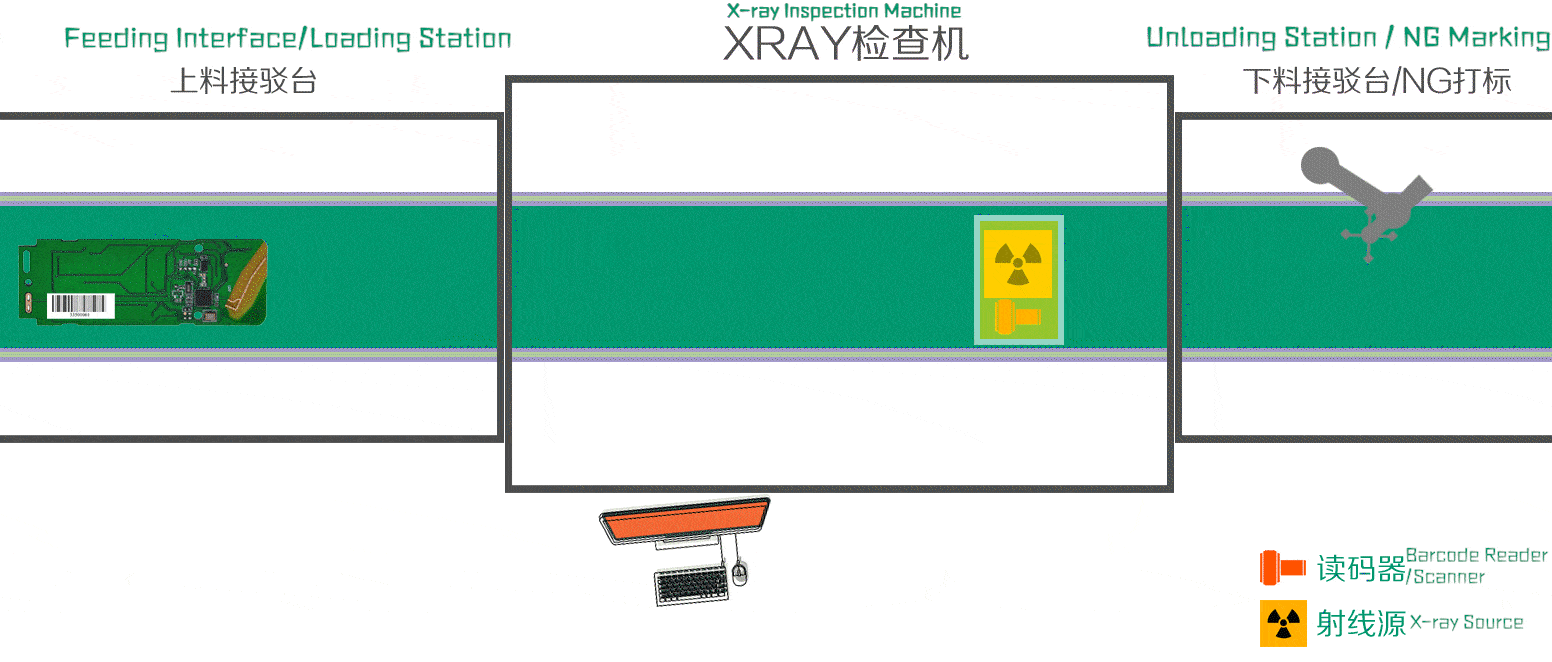

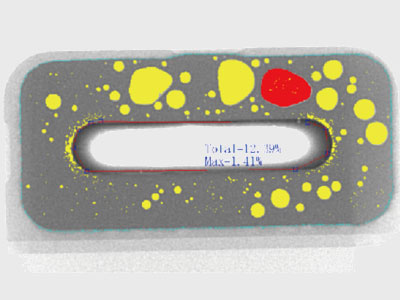

    Automated In-line X-ray Inspection System with Result Analysis Capabilities

    Upload to MES

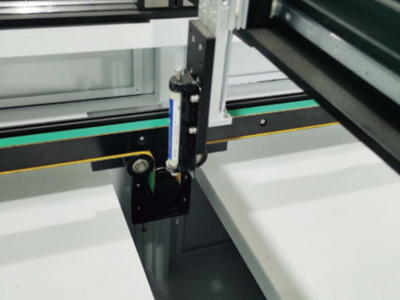

    Automatic NG-OK sorting with identification

    Automatic barcode QR-code reading and automatic inspection results

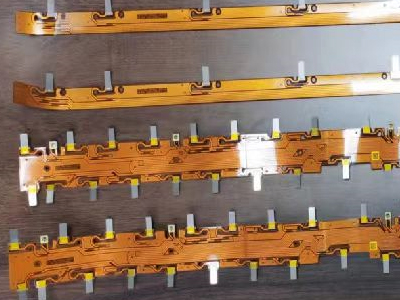

    Inspection of nickel plating pads on FPCs

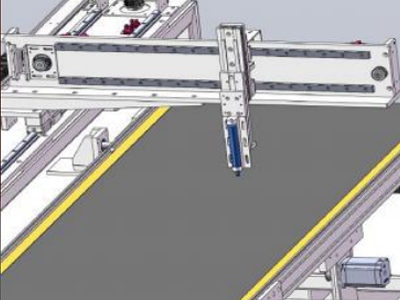

    Marking of NG locations

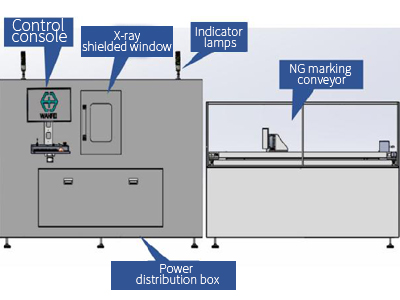

    X-ray equipment modules

    Automated product tracking using QR codes barcodes

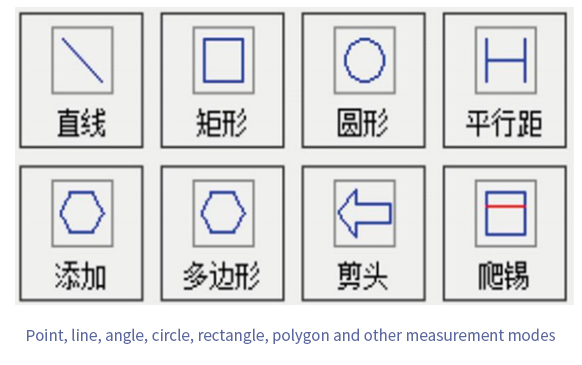

    Point,line,angle,circle,rectangle,polygon and other measurement modes

  • X-ray Tube
    X-ray Tube Type Microfocus Sealed Tube

    Maximum

    X-ray Tube Voltage

    		 90 KV / 130KV

    Maximum

    X-ray Tube Current

    		 200 μA
    X-ray Tube Focal Spot Size 5 μm-15μm
    X-ray Tube Target Power 8 W / 40W
    Detector
    Detector Type

    High-Resolution Digital

    Flat Panel Detector (FPD)
    Detector Resolution 5.8 LP/mm
    Detector Pixel Size 85 μm
    Overall status
    Equipment dimensions (without docking station) 2500mm(L)*1500mm(W)*1700mm(H)
    Weight of the equipment 4500KG
    Power 6500W
    Stage
    Stage Size/Dimensions 1800mm (L) x 650mm (W) (customisable)

    Maximum Stage

     Load Capacity/Weight

    		 20 kg (customisable)
    Radiation Safety

    X-ray Leakage

    /Radiation Leakage

    		 < 1 μSv/h
