The company independent research and development of HF-P100 is to meet the needs of electronic manufacturers launched large capacity high resolution new X-RAY detection system, excellent detection effect is suitable for large circuit board BGA, CSP, inverted chip detection, semiconductor, packaging components, electronic connector module detection, ceramic products, aviation components, photovoltaic industry, battery industry and other special industries.For large circuit boards and large panels can be programmed and automatic detection accuracy and repetition accuracy are high.

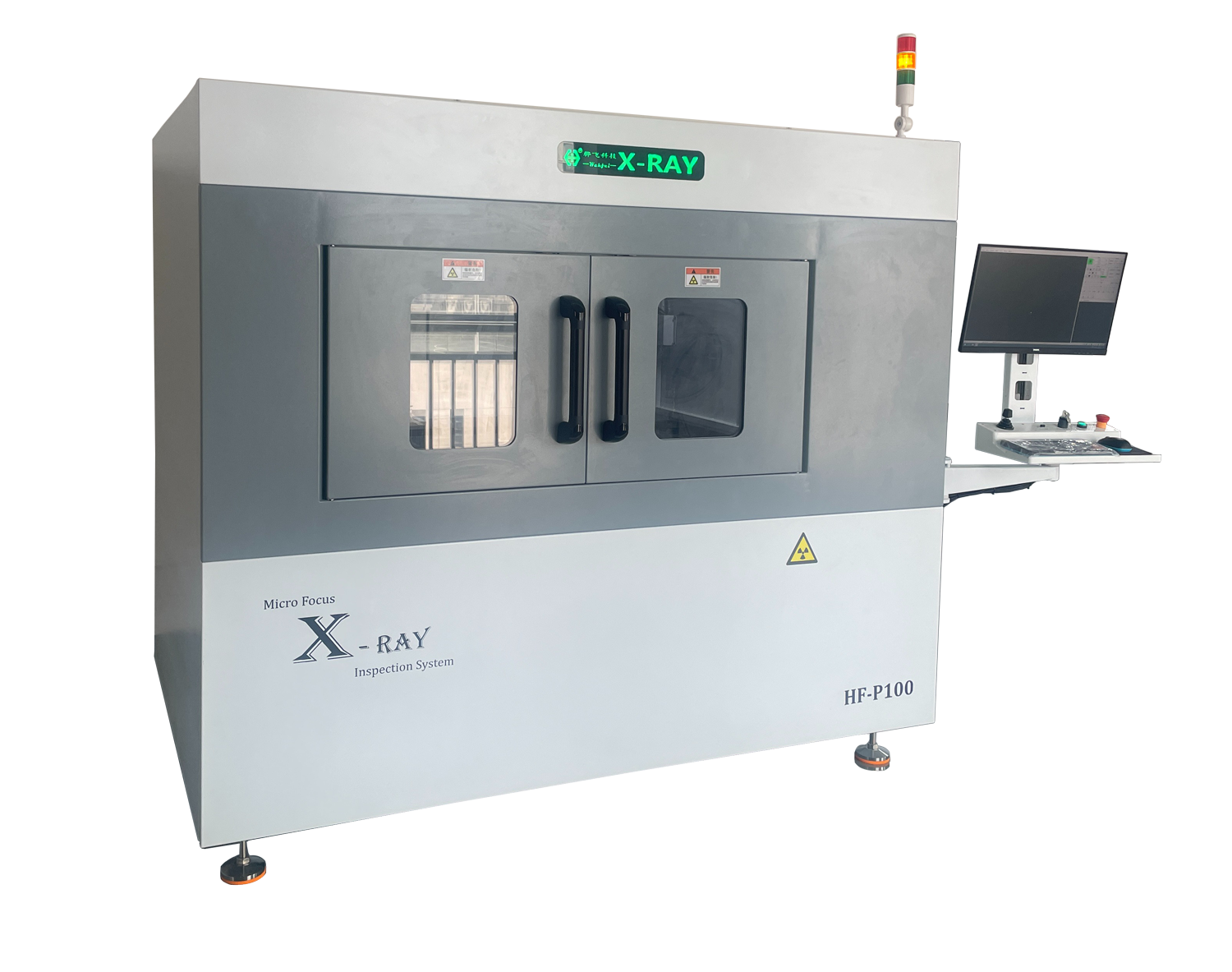

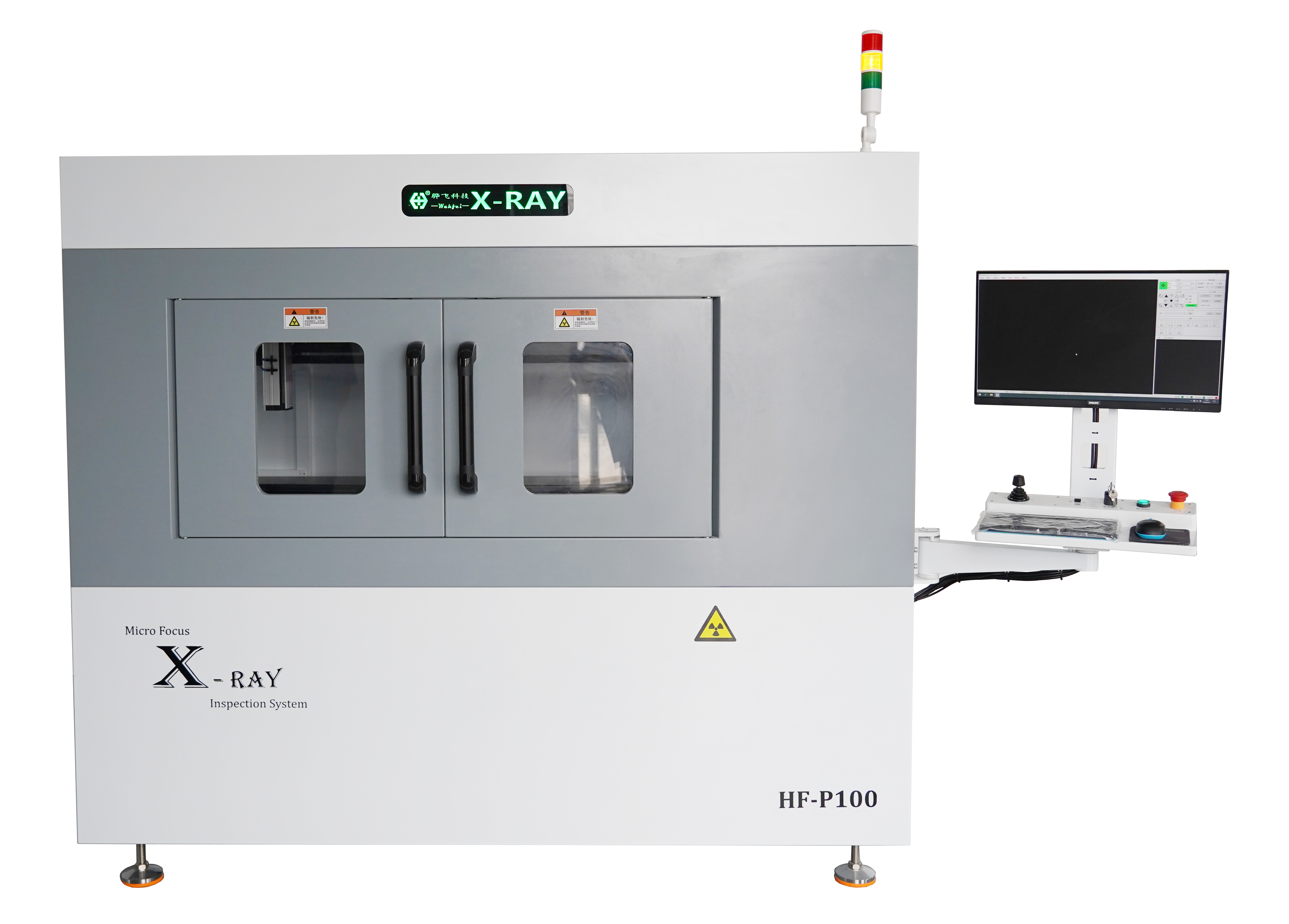

HF-P100 overview

• 90KV X-ray source
• High-resolution digital flat panel detector (FPD)
• Easy and fast operation
• Five-axis linkage control system
• Sample stage size: 1200mm × 600mm
• Multi-functional image processing system independently developed by Wafei Technology
• Multiple measurement functions (distance, diameter, void ratio, solder climbing height, etc.)
• Multi-point CNC editing and positioning functions

• LED
• Automotive electronics
• Aerospace
• Electronic semiconductor packaging
• SMT - BGA/QFN inspection
• 5G communication
• Connectors
• Wire harnesses

• Lithium batteries

• Capacitors
• Molded plastic components

Application Range

Function Overview

  • X-ray Inspection Image Gallery

    PCBA - QFN Soldering Inspection

    PCBA - BGA Soldering Inspection

    PCBA - Connector Solder Penetration Inspection

    FPC - Nickel Sheet Soldering Inspection

    Semiconductor Package Inspection

    Lithium Battery Inspection

    Capacitance Inspection

    Wire Connectors

    LED

    Diamond

    Radiator Hose

    LED Testing

  • Device Configuration

    The Project

    Note

    		 Quantity

    Microfocal ray source

    Installed on the device

    		 1

    FPD

    Installed on the device

    		 1

    The FPD data line

    Installed on the device

    		 1

    X ray device power supply cable

    Installed on the device

    		 1

    X light control cable

    Installed on the device

    		 1

    Load table

    Installed on the device

    		 1

    Motor control system

    Installed on the device

    		 2

    PC(includes power cables)

    Installed on the device

    		 1

    The Mouse

    Installed on the device

    		 1

    The Keyboard

    Installed on the device

    		 1

    XRaySystem image processing software

    Installed on the device

    		 1

    Operating manual

    Random distribution

    		 1

    A 22-inch display

    Installed on the device

    		 1

    AC 220V dedicated power cable

    Random distribution

    		 1

    Steady the pressure of the power supply

    Random distribution

    		 1
  • Device Parameters

    The HF-P100 series of technical parameters

    Dimensions

    2150mm(wide) × 1050mm(deep)

    × 1460mm (height)

    Weight

    1600KG

    Working environment

    Temperature:0°C-40°C

    Humidity:30-70RH
    Voltage

    220VAC,50/60Hz

    Power supply

    1.3KW

    Imager

    High-resolution FPD

    Imager resolution

    10.1LP/mm/5.0LP/mm

    FPD Sport

    285mm
    Amoom fication

    220 ×

    Workbench size

    330mm × 426mm

    X-light tube type

    Close closure

    Maximum voltage of the X- -optical tube

    90KV

    Maximum current of the X-optical tube

    0.2mA

    Optical tube target power

    8W

    Image processing software

    X-Ray System multi-function image

    processing system

    (independently developed)

    Security

    <1&micro; S v /hr
