√ 90kV X-ray source;
√ High-resolution flat panel detector (FPD);
√ High-resolution imaging system one-button navigation;
√ Sample stage size: 500mm×500mm;
√ In-house developed multi-functional image processing system;
√ Multi-point CNC automated positioning function;
√ Auxiliary manual marking of NG/OK positions in different colors.

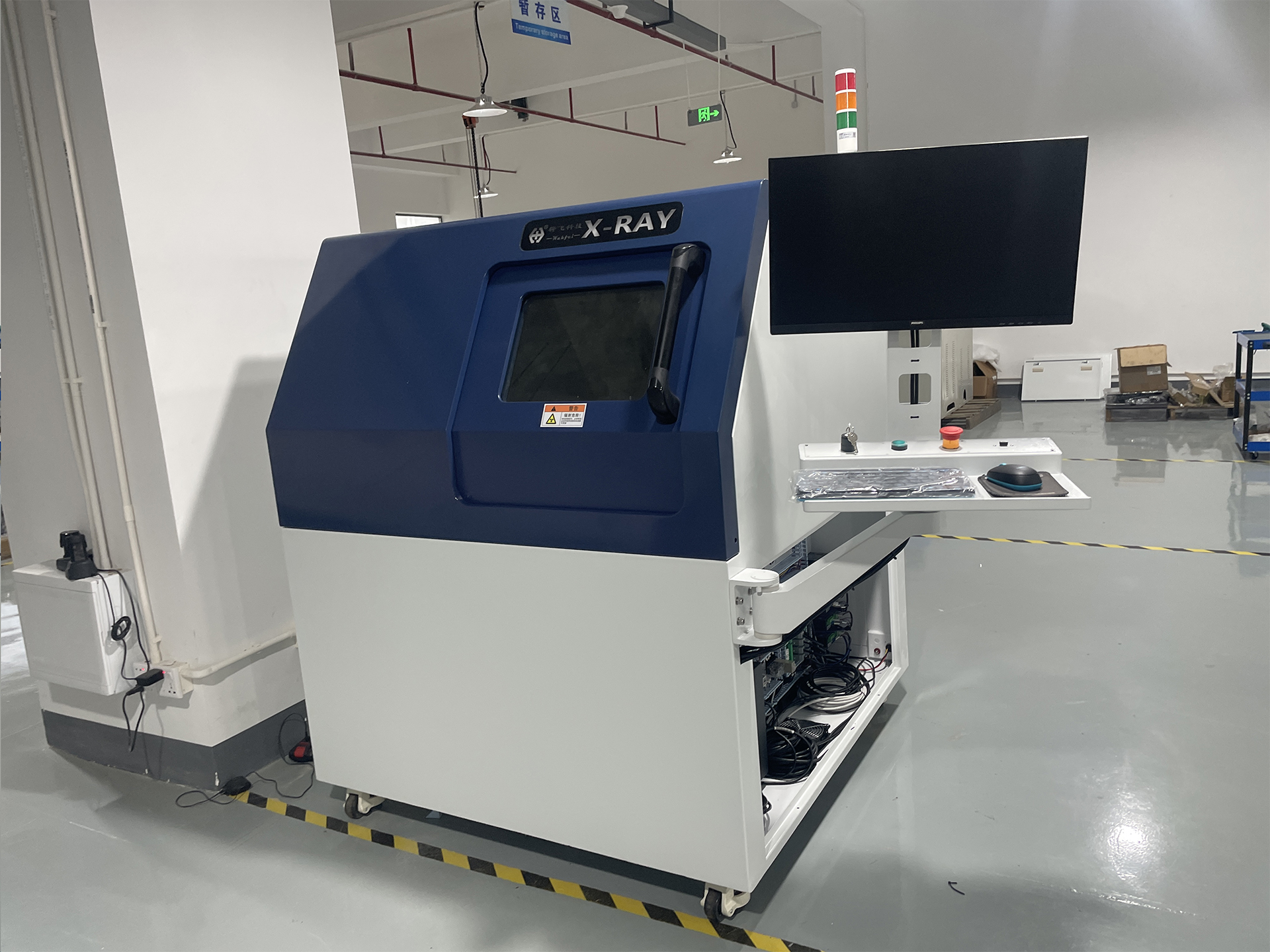

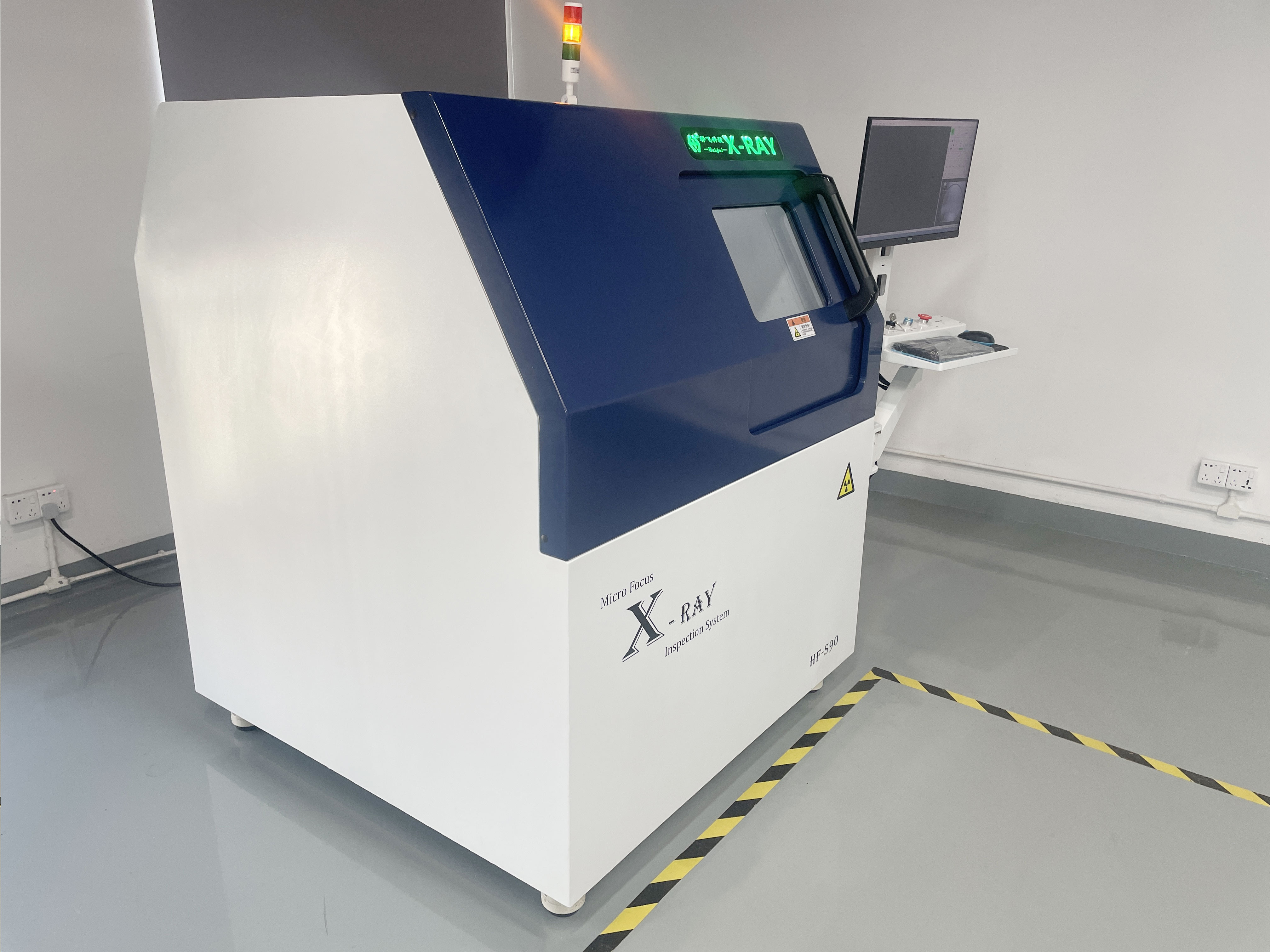

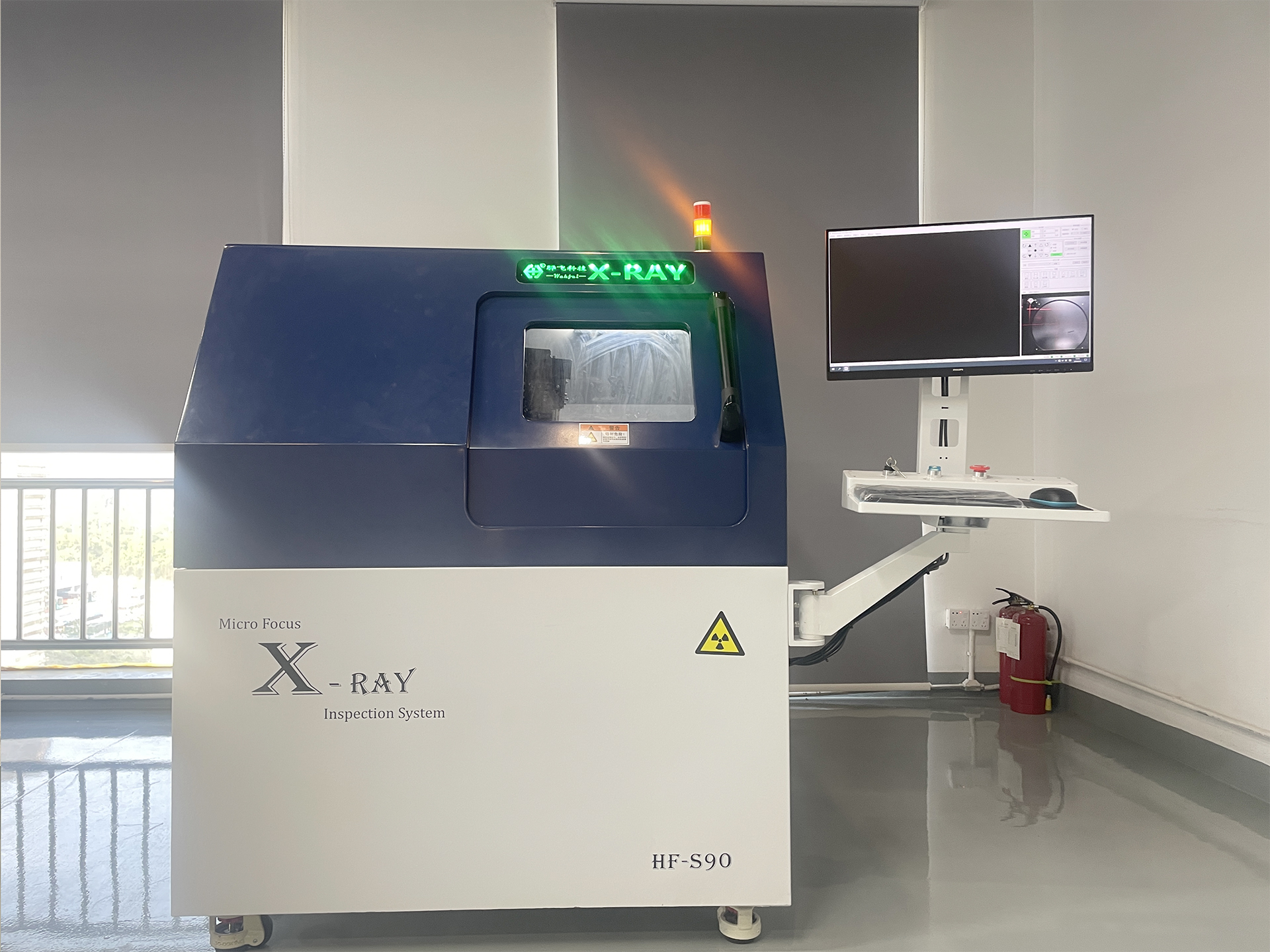

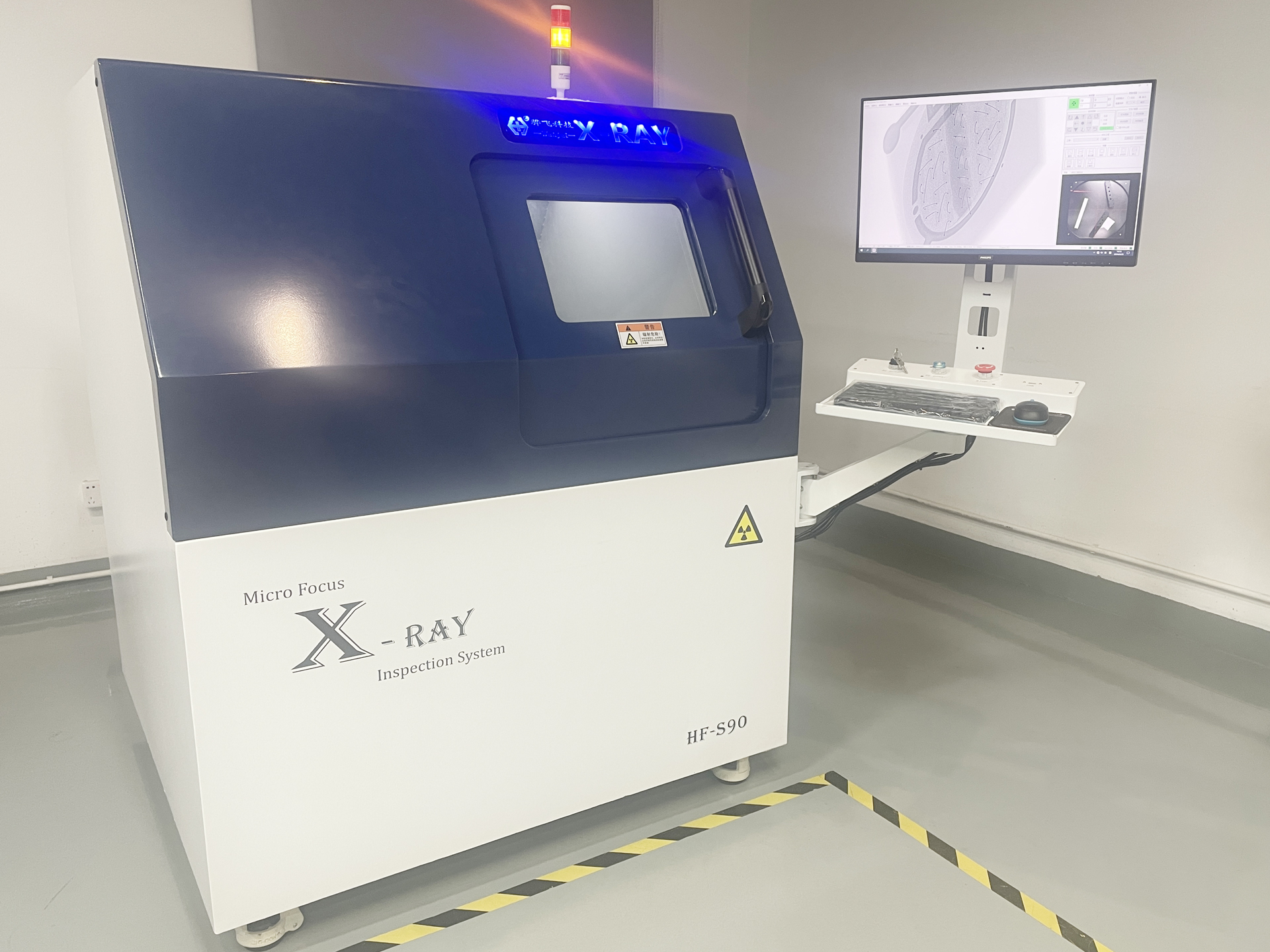

HF-S90 overview

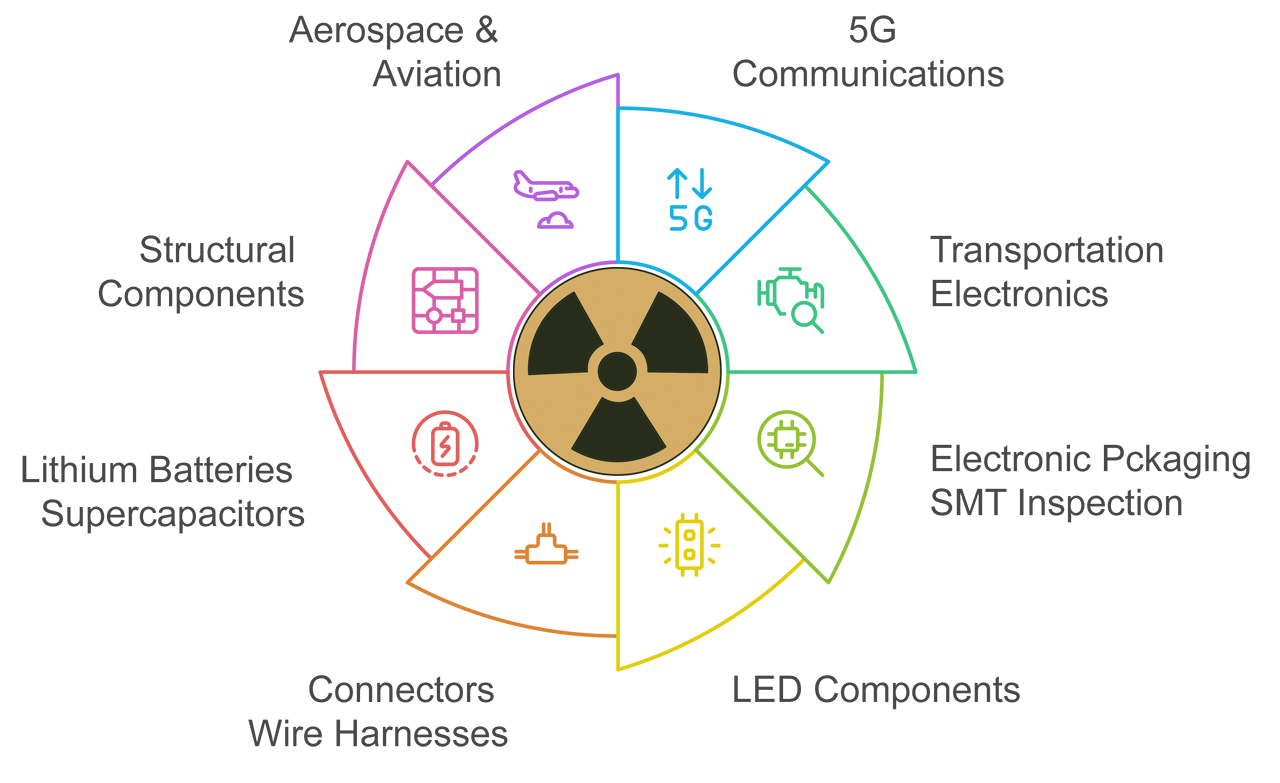

Application Range

  • PCBA - QFN Soldering Inspection

    PCBA - BGA Soldering Inspection

    PCBA-Plug-in tin detection

    FPC-Nickel Chip Soldering Inspection

    Semiconductor Package Inspection

    Lithium Battery Inspection

    Capacitance Inspection

    Wire Connectors

    LED

    Diamond

    Radiator Hose

    LED Testing

  • The Project

    Note

    		 Quantity

    Microfocal ray source

    Installed on the device

    		 1

    FPD

    Installed on the device

    		 1

    The FPD data line

    Installed on the device

    		 1

    X ray device power supply cable

    Installed on the device

    		 1

    X light control cable

    Installed on the device

    		 1

    Load table

    Installed on the device

    		 1

    Motor control system

    Installed on the device

    		 2

    PC(includes power cables)

    Installed on the device

    		 1

    The Mouse

    Installed on the device

    		 1

    The Keyboard

    Installed on the device

    		 1

    XRaySystem image processing software

    Installed on the device

    		 1

    Operating manual

    Random distribution

    		 1

    A 22-inch display

    Installed on the device

    		 1

    AC 220V dedicated power cable

    Random distribution

    		 1

    Steady the pressure of the power supply

    Random distribution

    		 1

  • Category

    Component

    Specifications

    X-ray Tube

    Type

    Sealed tube

    Maximum Voltage

    90KV

    Maximum Current

    200UA

    Focal Spot Size

    5-15μm

    Power Rating

    8W

    Detector

    Type

    High-resolution Flat Panel Detector (FPD)

    Resolution

    5.8LP/mm

    Multi-angle Inspection

    Operation

    Concentric rotation of X-ray source and FPD, horizontal platform remains level

    Maximum Tilt Angle

    60° (X-ray tube and FPD)

    Sample Stage

    Dimensions

    550mm × 450mm (Φ450mm with 360° rotation feature)

    Maximum Load Capacity

    10KG

    Machine Specifications

    External Dimensions

    1200mm(L) × 1210mm(W) × 1460mm(H)

    Weight

    Approximately 1000kg

    Power Supply

    220VAC, 50/60Hz

    Operating Environment

    0℃ to 40℃ / 30-85% RH

    Power Consumption

    1.3KW

    Control System

    Operating System

    Windows 10

    RAM

    8GB

    Storage

    1TB

    Display

    24-inch widescreen monitor

    Input Devices

    Mouse and keyboard

    Safety Interlocks

    Door Safety Features

    • X-ray cannot activate if door is open• Door automatically locks during X-ray operation• Forced door opening triggers immediate X-ray shutdown

    Software Features

    Image Processing

    Proprietary multi-functional imaging system

    Language Support

    One-click switch between Chinese/English

    Navigation

    HD auto-navigation with real-time position tracking

    Program Storage

    Over 1000 preset positions for multiple product testing

    Test Point Management

    Step-by-step NG/OK marking with automated positioning

    Position Recording

    Color-coded test point results for easy identification

    Measurement Tools

     Void calculation • Three-point diameter measurement • Parallel distance measurement • Polygon measurement

    Annotation Tools

    Arrow markers and text annotations

    Access Levels

    Administrator, Engineer, Operator

    Radiation Safety

    Leakage Rate

    Less than 1μSv/h
