✔ High-resolution camera with one-touch positioning/navigation.
✔ Stage size: 300mm × 300mm.
✔ Proprietary multi-functional image processing system.
✔ Multi-point CNC automatic positioning function.
✔ Marking of NG/OK positions to aid manual inspection/judgment.
✔ Different colors used to record the position information of inspection/judgment points.

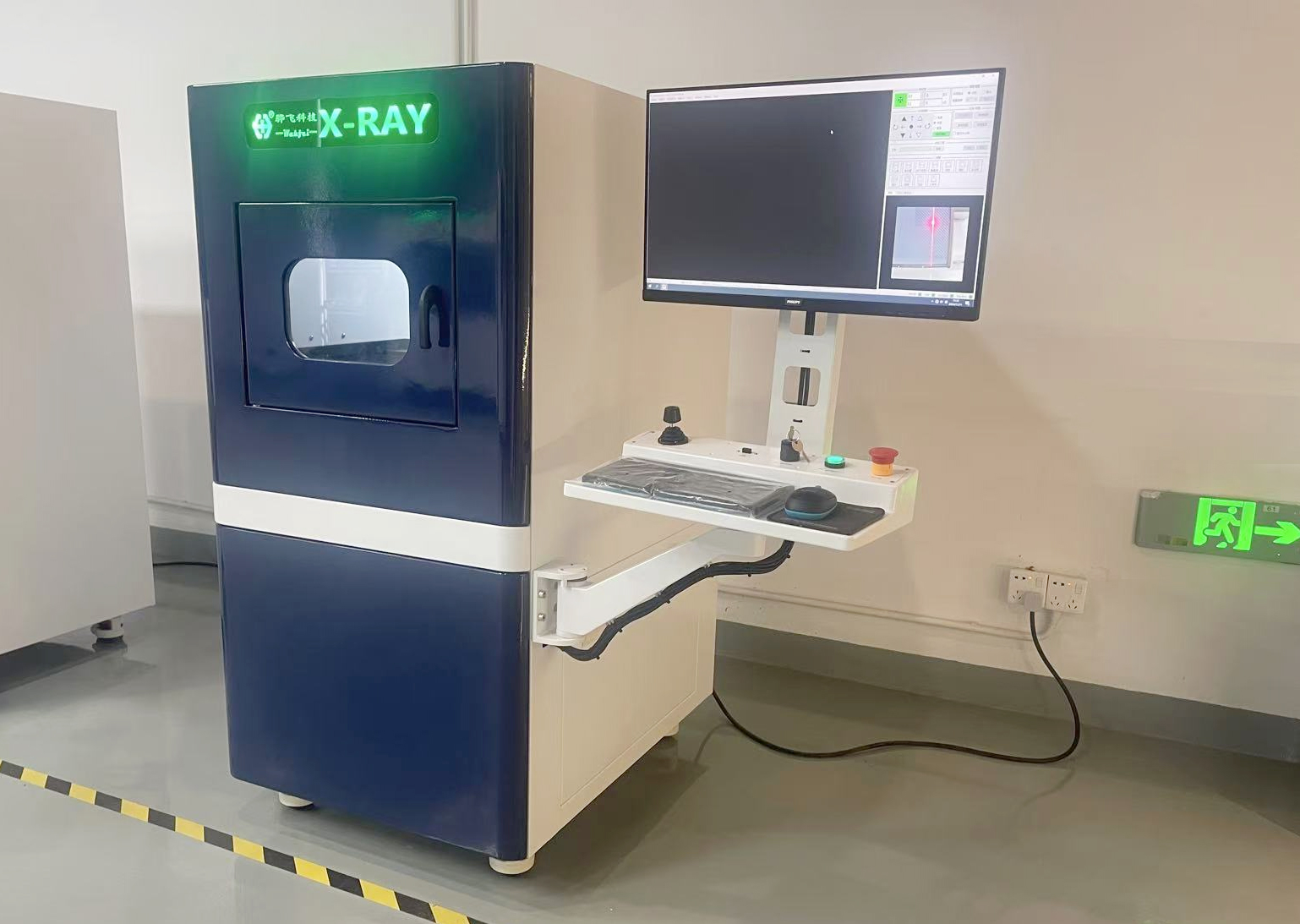

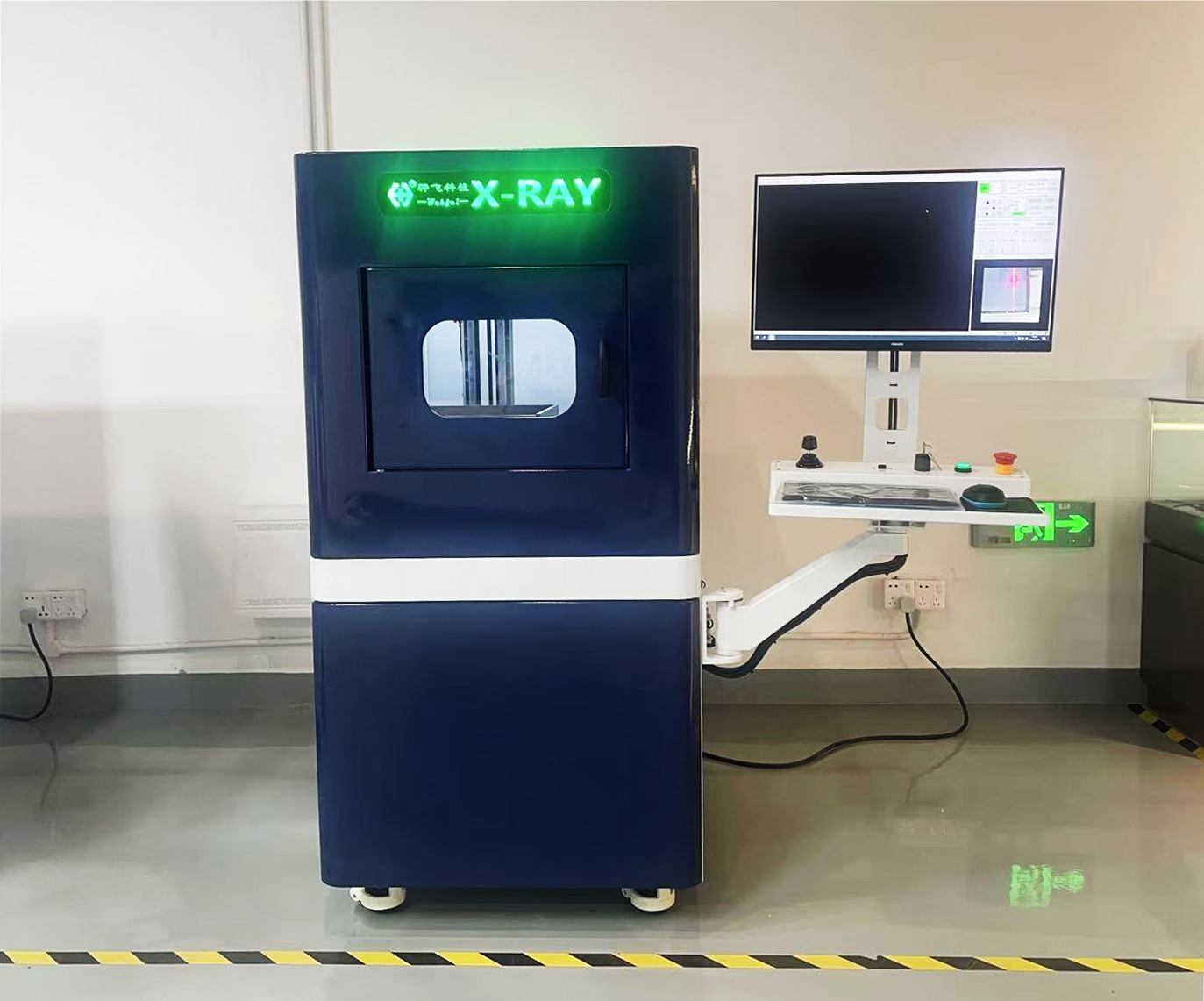

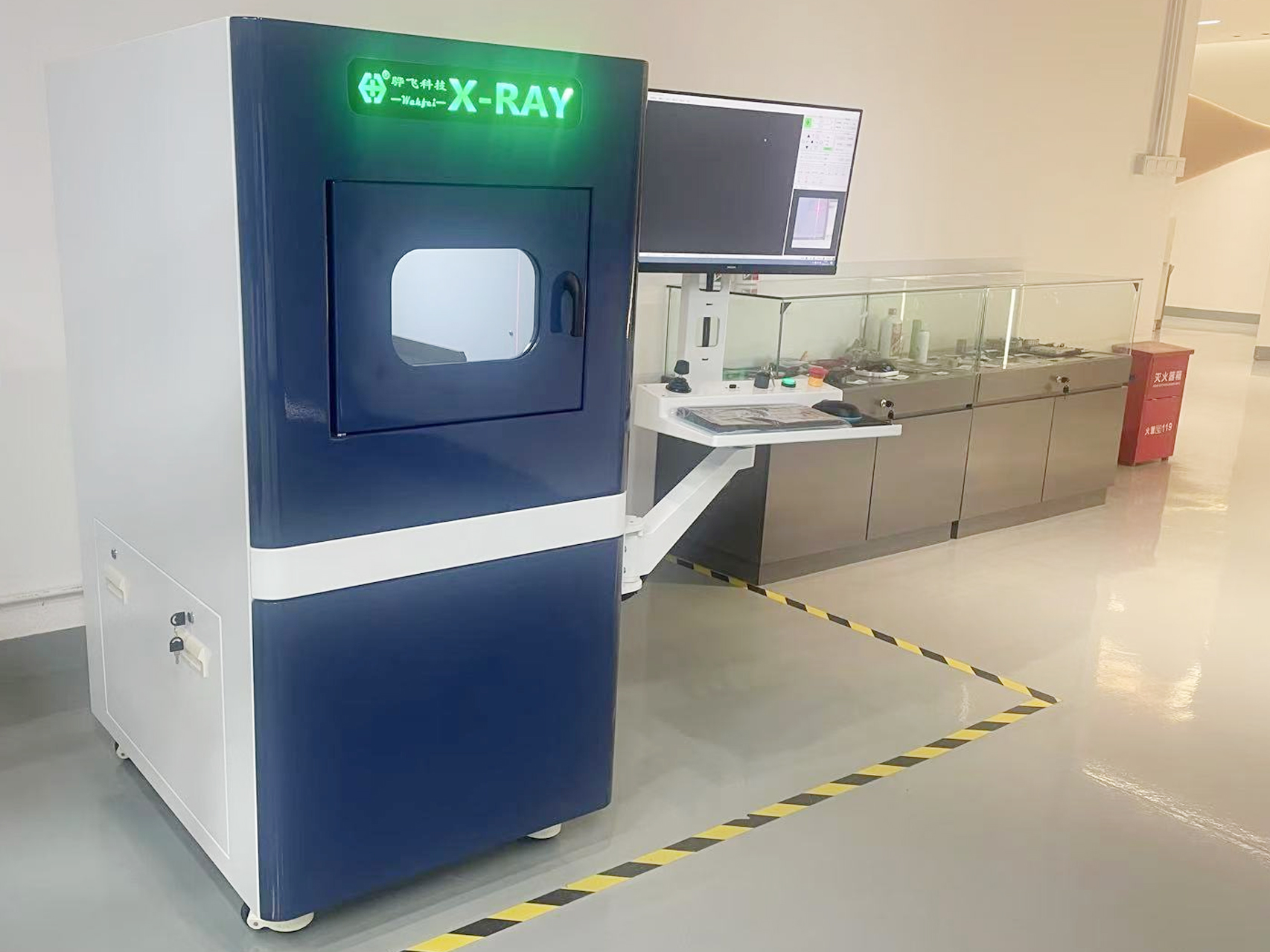

HF-S81 overview

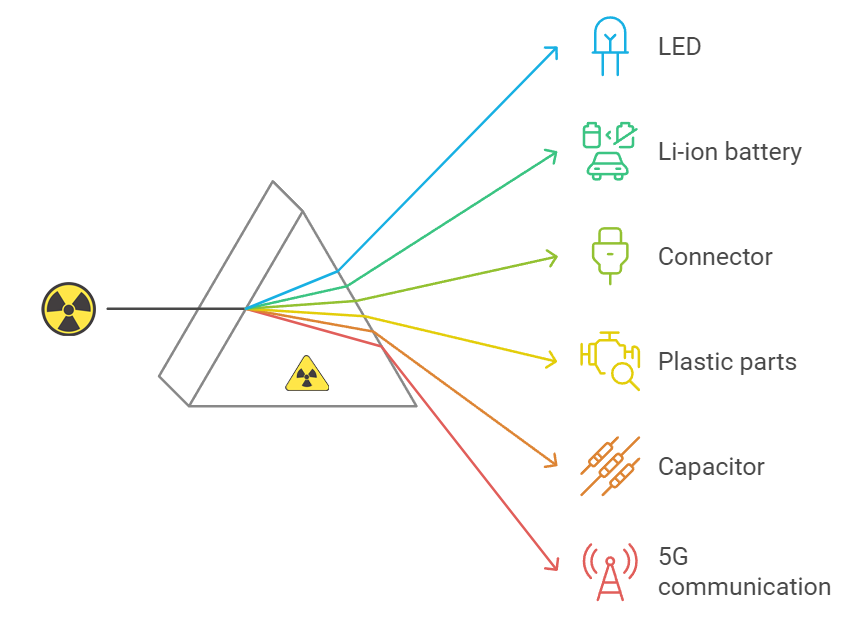

Application Range

  • PCBA - QFN Soldering Inspection

    PCBA - BGA Soldering Inspection

    PCBA-Plug-in tin detection

    Semiconductor Package X-ray Inspection

    Semiconductor Package Inspection

    Lithium Battery Inspection

    Capacitance Inspection

    Wire Connectors

    LED

    Diamond

    Radiator Hose

    LED Testing

  • X-ray Tube
    X-ray Tube Type Microfocus Sealed Tube

    Maximum

    X-ray Tube Voltage

    		 90 kV

    Maximum

    X-ray Tube Current

    		 200 μA
    X-ray Tube Focal Spot Size 5 μm
    X-ray Tube Target Power 8 W
    Detector
    Detector Type

    High-Resolution Digital

    Flat Panel Detector (FPD)
    Detector Resolution 5.8 LP/mm
    Detector Pixel Size 85 μm
    Pixel Matrix 1536 x 1536 pixels
    Imaging Area/Field of View 130 x 130 mm
    Frame Rate 20 fps
    A/D Conversion Bit Depth 16 bit
    Stage
    Stage Size/Dimensions 300 x 300 mm

    Maximum Stage

     Load Capacity/Weight

    		 5 kg
    Radiation Safety

    X-ray Leakage

    /Radiation Leakage

    		 < 1 μSv/h

  • 700*900*1500mm, adapt to more working environment

    Safety radiation detector monitors radiation in real time

    CNC programming automatic alignment function

    Higher Z-axis height for a larger field of view
