√ High efficiency, mainly for batch inspection customers
√ Imported ray source
√ high resolution digital flat panel detector (FPD)
√ High-resolution camera with one-button navigation
√ Carrier table size: 350mm×350mm
√ self-developed multi-functional image processing system
√ Multi-point CNC automatic positioning function
√ Auxiliary manual judgment results NG/OK position labeling
√ different colors to record the judgment point position information

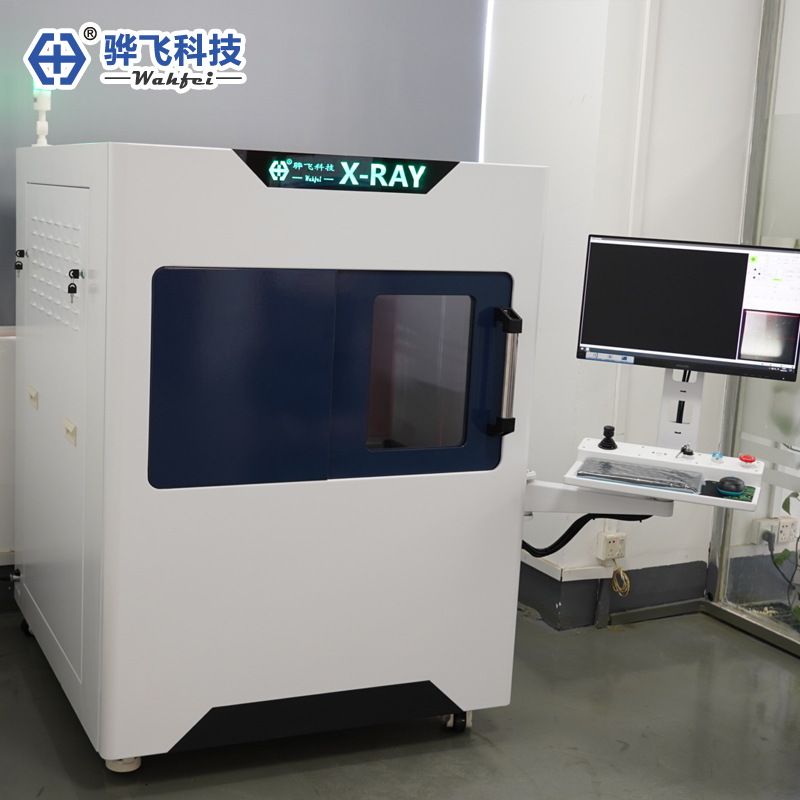

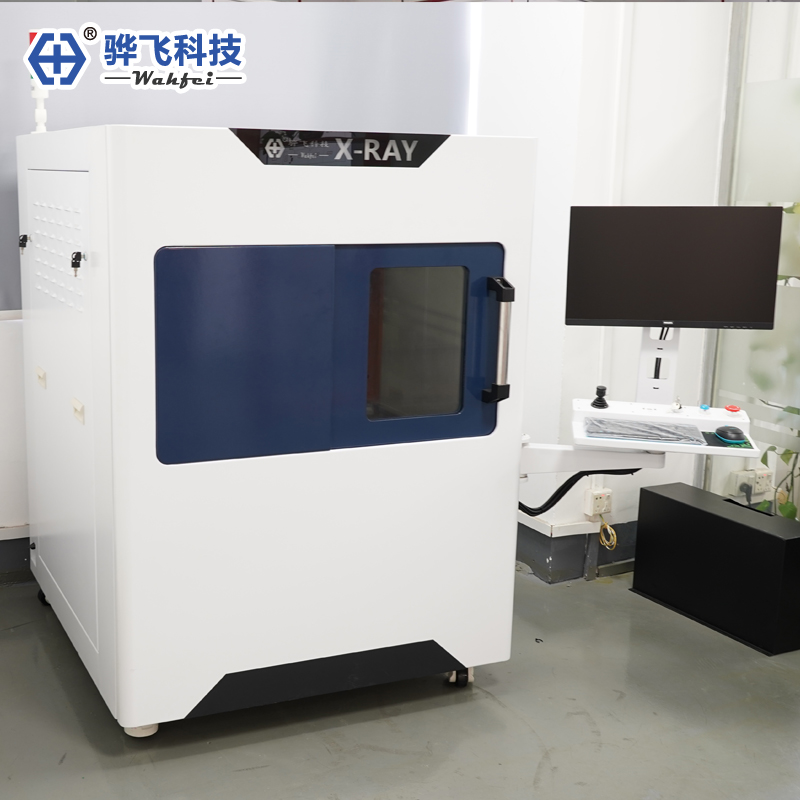

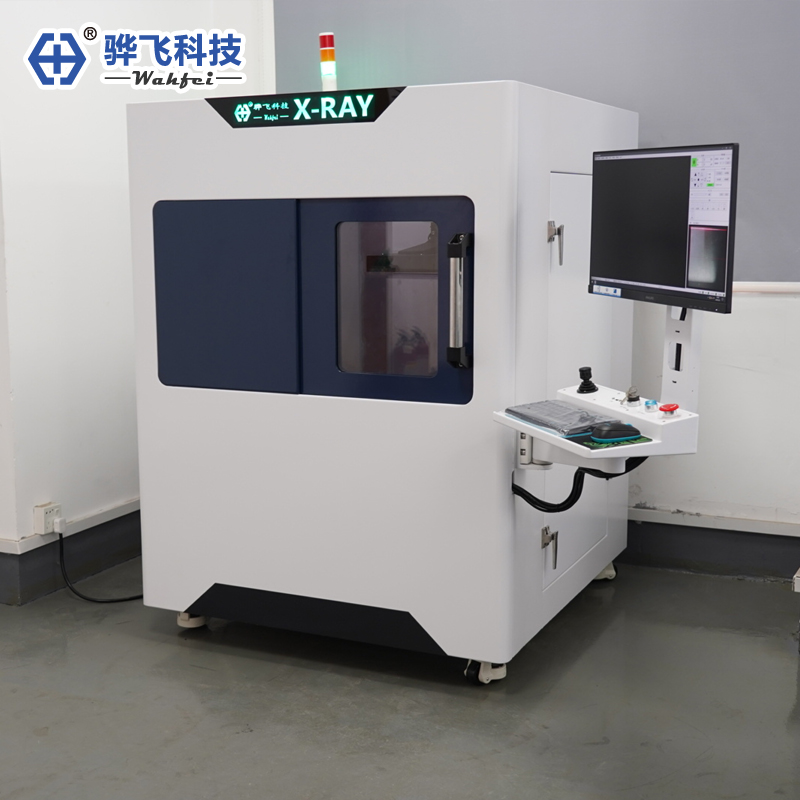

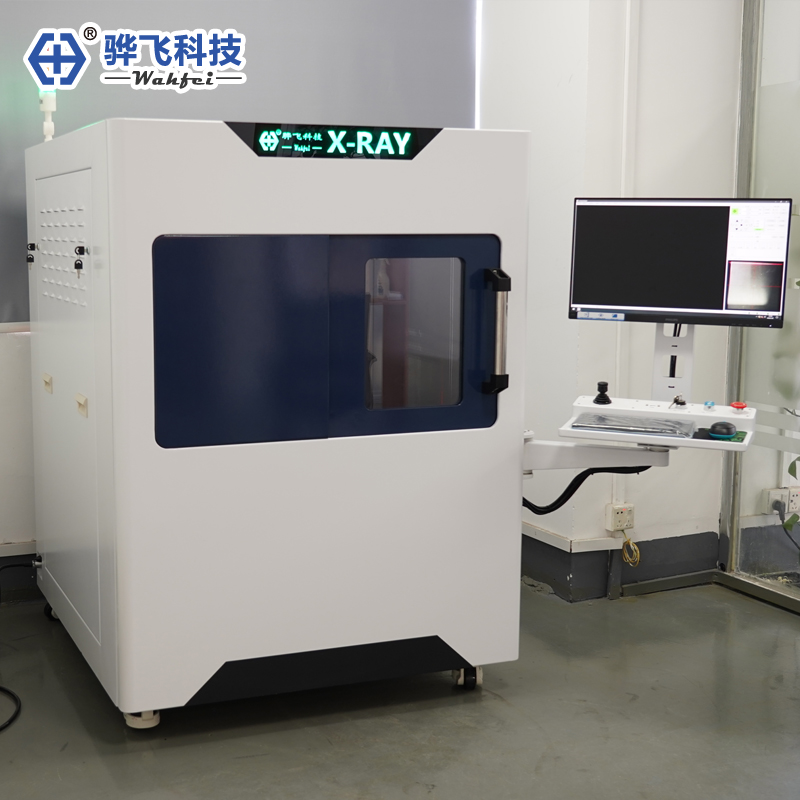

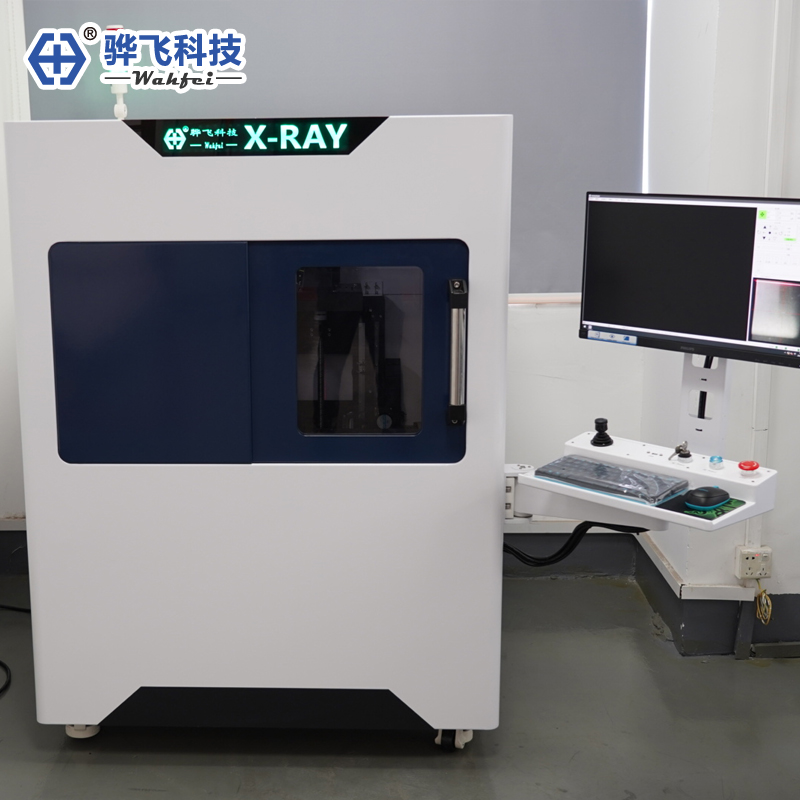

HF-S80P overview

Application Range

  • PCBA - QFN Soldering Inspection

    PCBA - BGA Soldering Inspection

    PCBA-Plug-in tin detection

    FPC-Nickel Chip Soldering Inspection

    Semiconductor Package Inspection

    Lithium Battery Inspection

    Capacitance Inspection

    Wire Connectors

    LED

    Diamond

    Radiator Hose

    LED Testing

  • X-ray Tube
    X-ray Tube Type Sealed Tube
    Maximum Voltage of X-ray Tube 90 KV
    Maximum Current of X-ray Tube 200 μA
    Target Power of X-ray Tube 8 W
    Detector
    Detector Type High-Resolution Digital Flat Panel Detector (FPD)
    Detector Resolution 5.8 LP/mm

    Specimen Stage

    Sample Stage

    Loading Platform
    Stage Size 350 × 350 mm
    Maximum Load Capacity of Stage 10 KG

    System Parameters

    Overall Specifications
    Equipment Dimensions 1100 (L) × 1200 (W) × 1500 (H) mm
    Equipment Weight ~900 kg
    Power Supply 220VAC, 50/60Hz
    Operating Environment 0℃ ～ 40℃ / 30 ～ 70RH
    Equipment Power 1.3 KW
    Industrial Control Computer/IPC
    IPC Operating System Win10
    IPC Memory 8 GB
    IPC Hard Disk Capacity 1 TB
    Monitor 24-inch Wide Screen
    Control Method Mouse, Keyboard, Joystick
    Safety Interlock Function

    Safety Interlock Measures

     for Equipment Door

    The X-ray cannot be started if the door is not

    closed properly/The front door will be automatically

     locked when the X-ray is started and cannot be

    opened/If the door is forcibly opened during

    X-ray operation, the X-ray power will be forcibly cut off

    and shut down before the door opens.
    Radiation Safety
    X-ray Leakage <1 μSv/h

  •

    Image Processing Software

    Self-developed Multi-functional

    Image Processing System
    Software Language Chinese/English
    Navigation System

    High-definition Automatic Navigation plus

    Real-time Position Tracking Function,

    accurately and quickly move to

    the selected test point

    Multi-Point Editing

    Function

    Location editing and saving function based on multi-product measurement,

    which can be called at any time later. More than 1000 product models

    can be added and saved according to product requirements.

    Test Point Step

    NG/OK Marking

    During automatic positioning test according to the edited program,

    it is optional to choose interval timing positioning or personnel judgment of

     NG/OK before proceeding to the next point test, effectively preventing

    personnel from omissions.

    Different Color Record

    Judgment Point Position

    Information

    During automatic positioning test according to the edited program,

    the judgment result is marked with different colors on the simulated position map

     according to the operator's judgment result, which is convenient for selection.

    Software

    Measurement

    Function

    Cavity calculation, three-point diameter measurement,

     parallel distance measurement, polygon measurement function

    Software Annotation

     Function

    		 Arrow annotation, text annotation

    Software 3-Level Authority

     Management

    		 Administrator, Engineer, Operator
