√ 130KV ray source

√ high-resolution digital flat panel detector

√ one-key navigation,convenient and quick operation

√ five-axis linked controlling system

√ optional loading platform horizontal 360° rotation function

√ industry leading multi-angle detection function:(no distortion deformation, no loss of energy, no compression of detection range)

√ maximum inclination angle is 60°

√ loading platform size: 600mm ×600mm

√ self-developed multi-functional image processing system of Wahfei Technology

√ multi-type measurement function (distance, diameter, void ratio, climbing height, etc)

√ multi-point CNC editing and positioning function

√ test point step NG, OK for marking

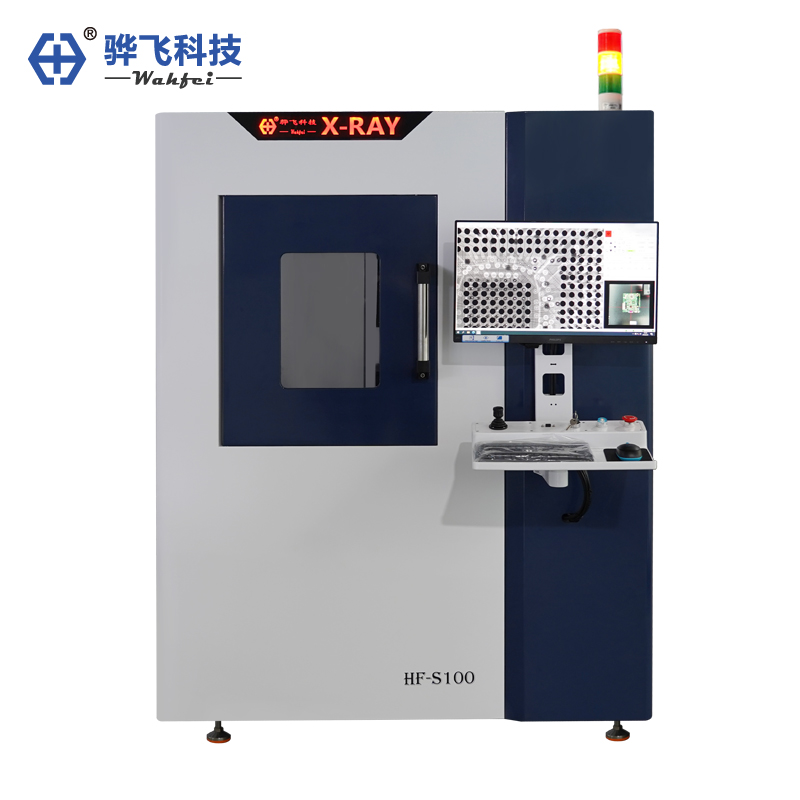

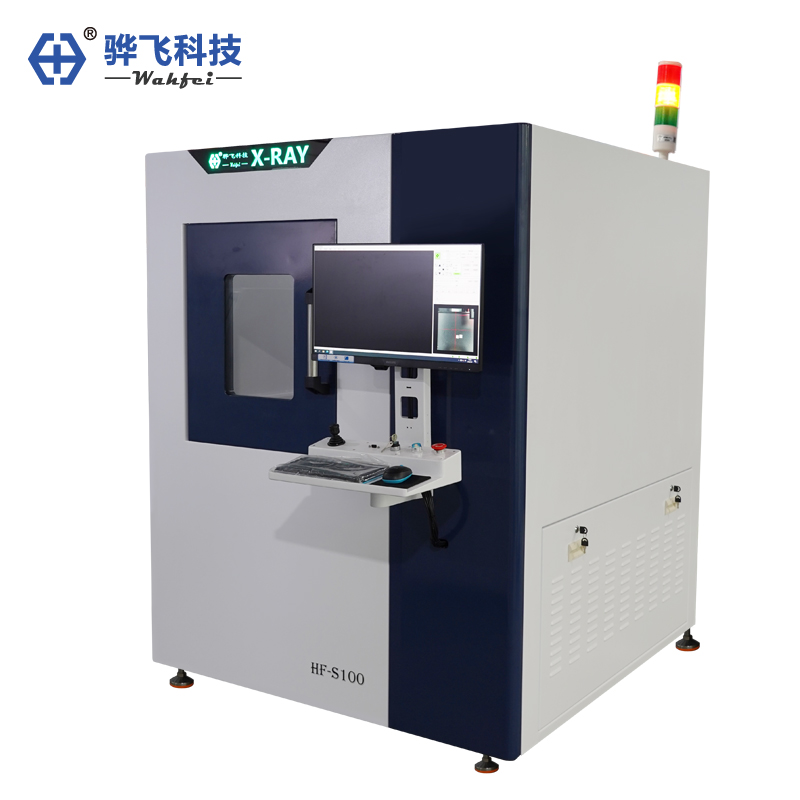

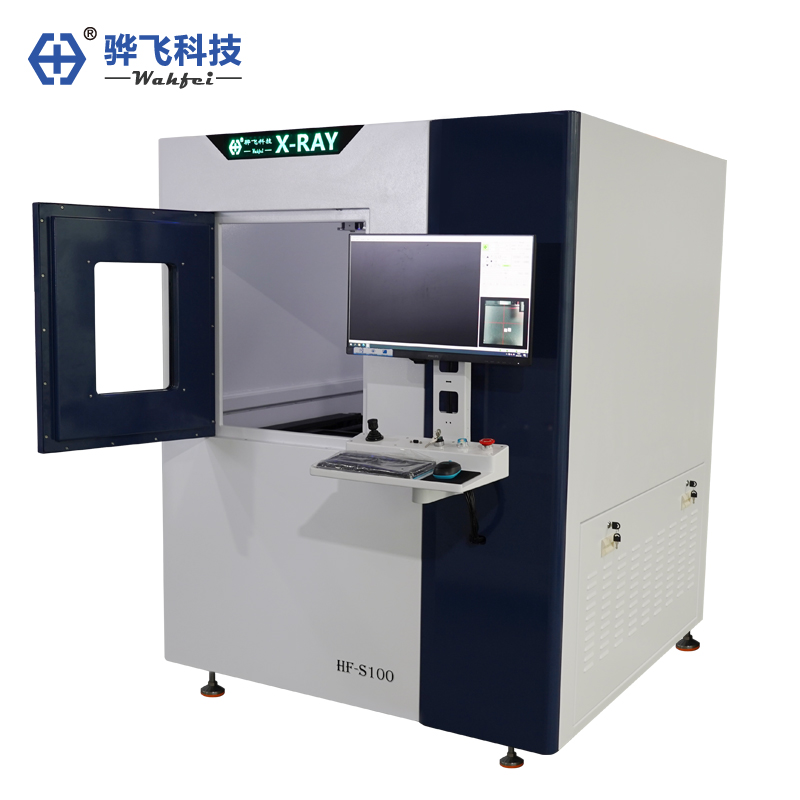

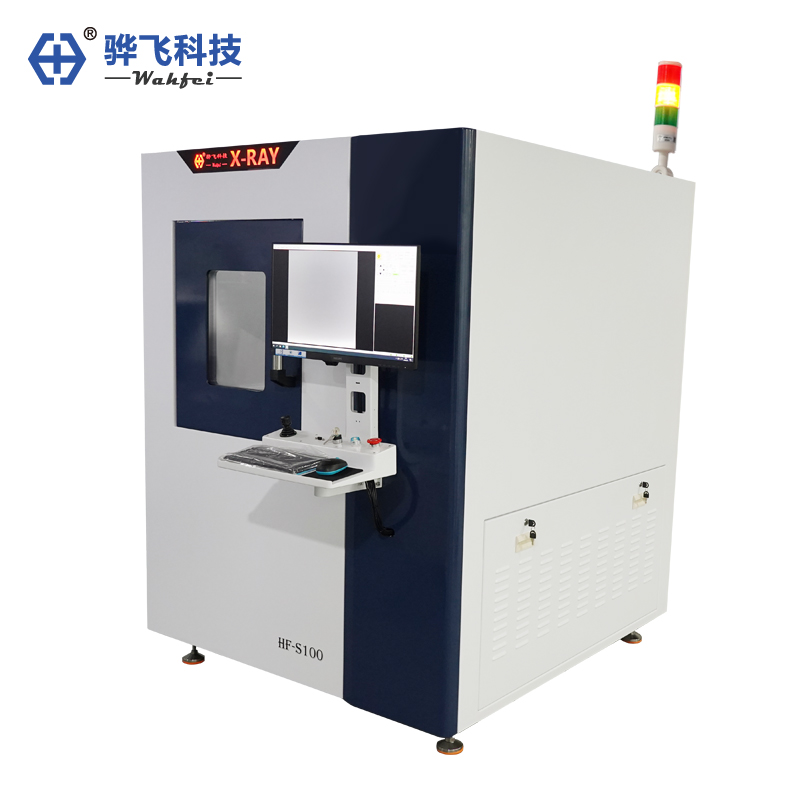

HF-S100 overview

Application Range

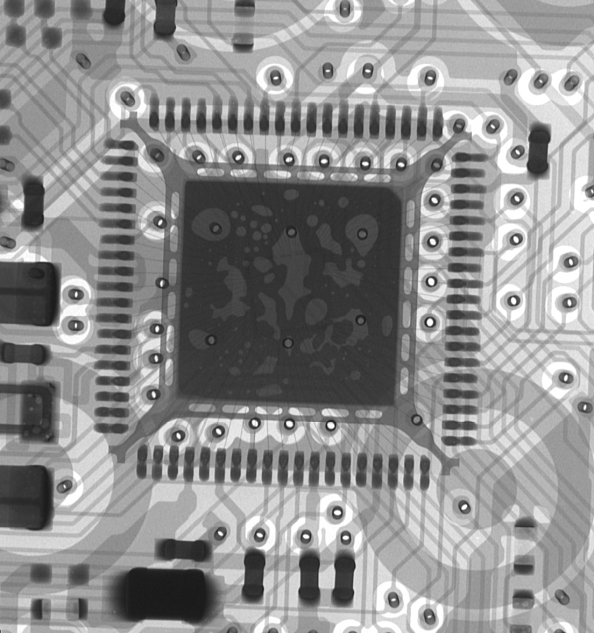

  • PCBA - QFN Soldering Inspection

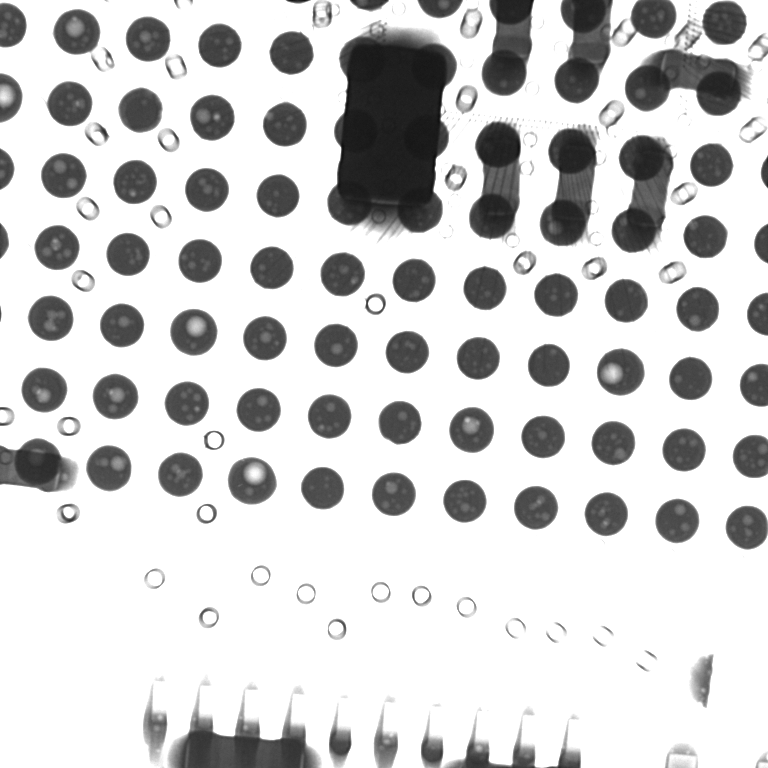

    PCBA - BGA Soldering Inspection

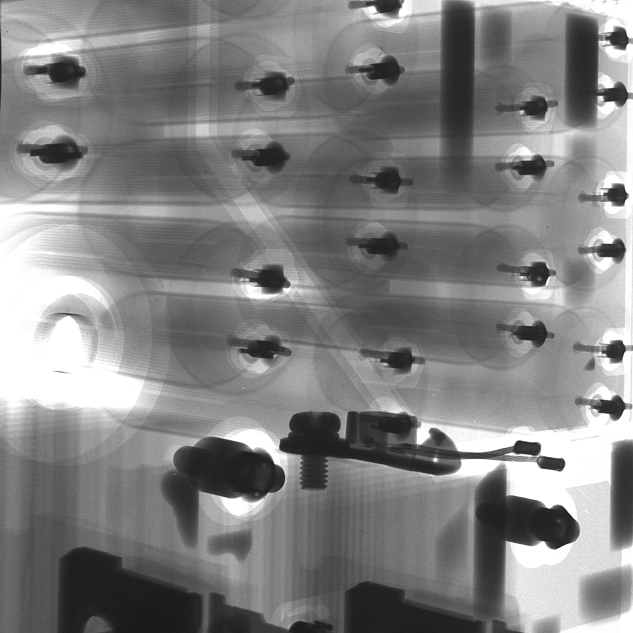

    PCBA-Plug-in tin detection

    FPC-Nickel Chip Soldering Inspection

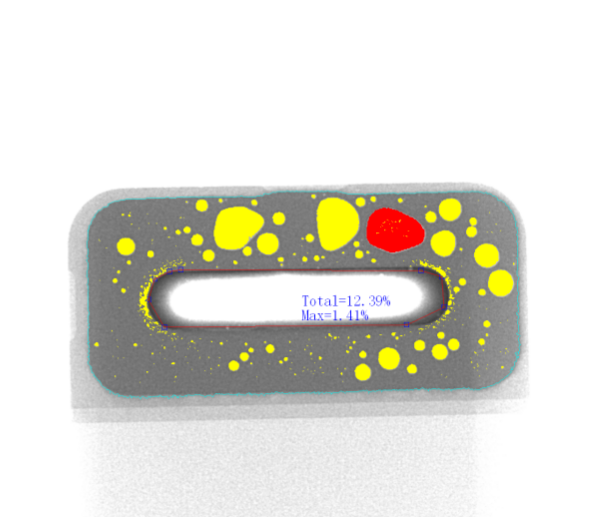

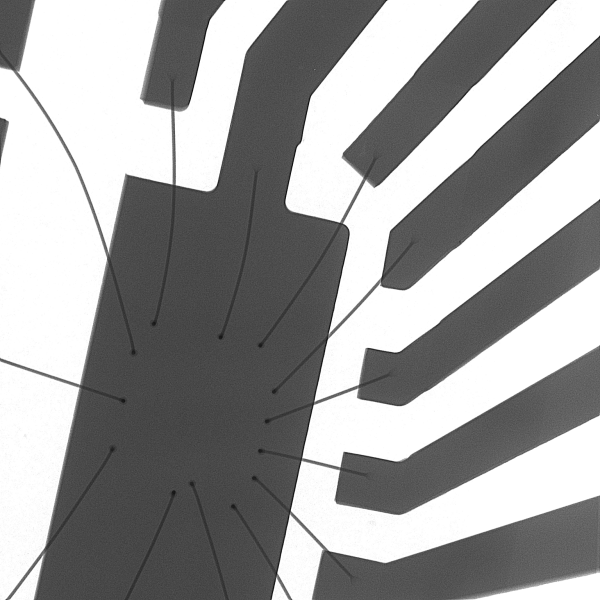

    Semiconductor Package Inspection

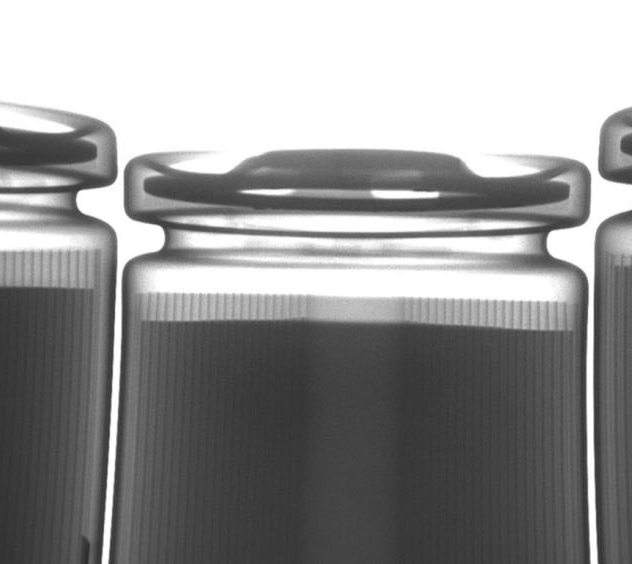

    Lithium Battery Inspection

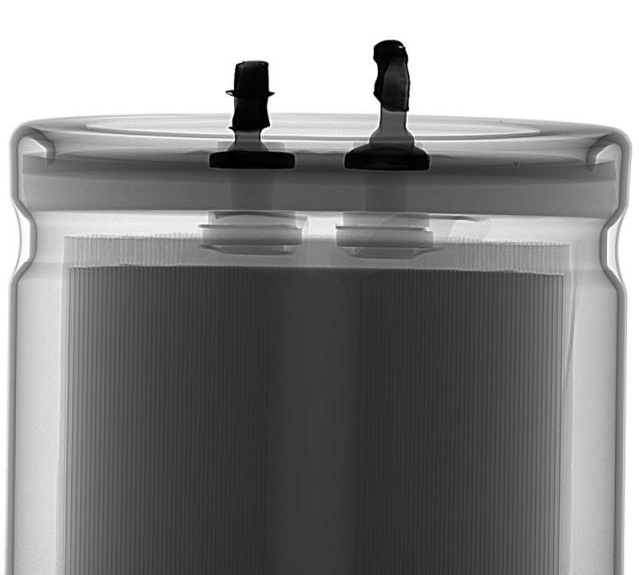

    Capacitance Inspection

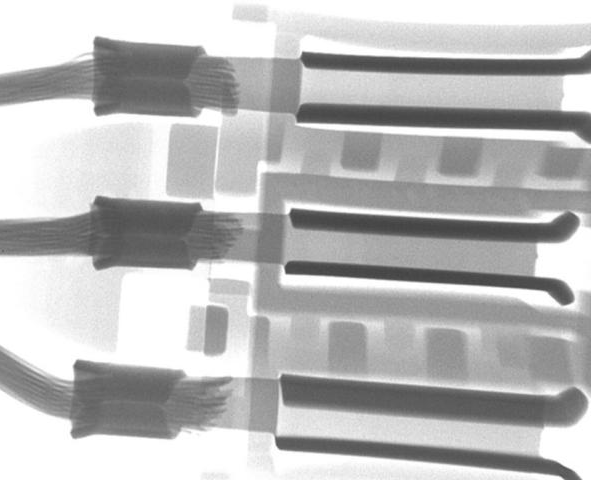

    Wire Connectors

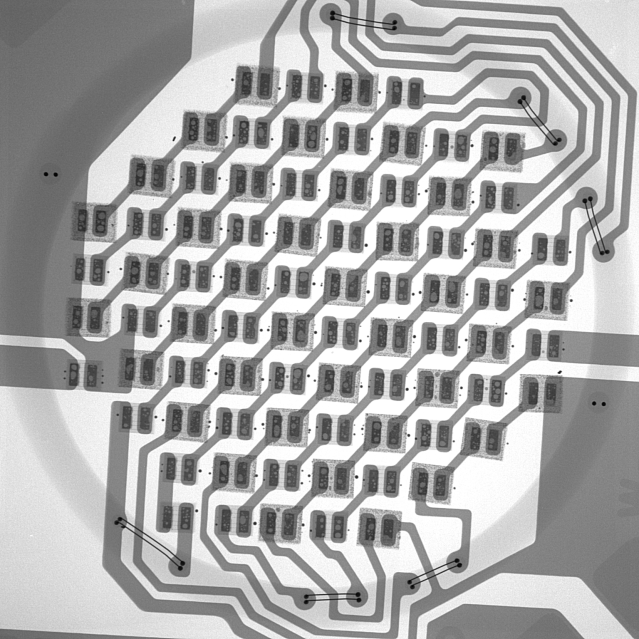

    LED

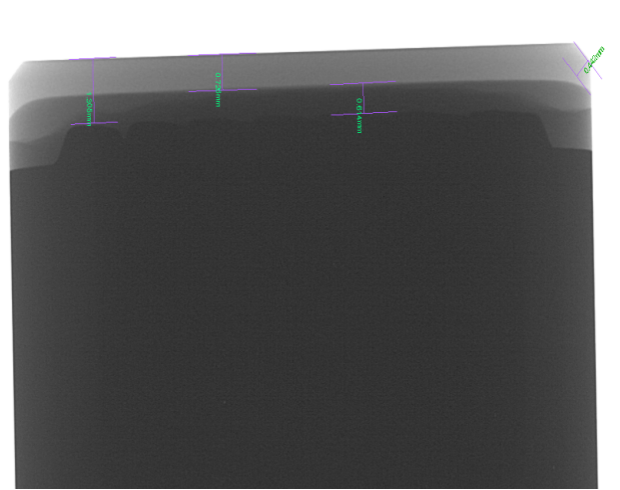

    Diamond

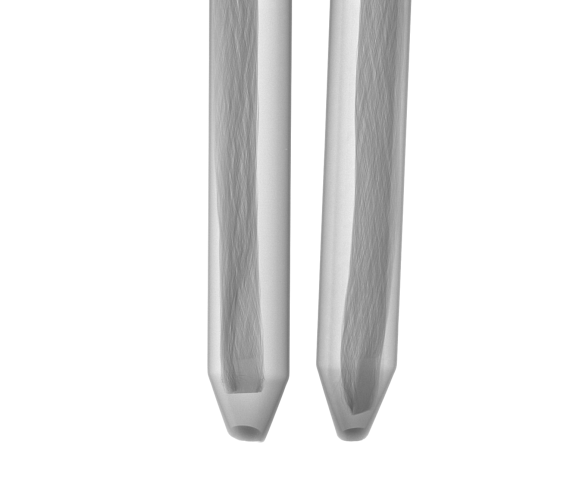

    Radiator Hose

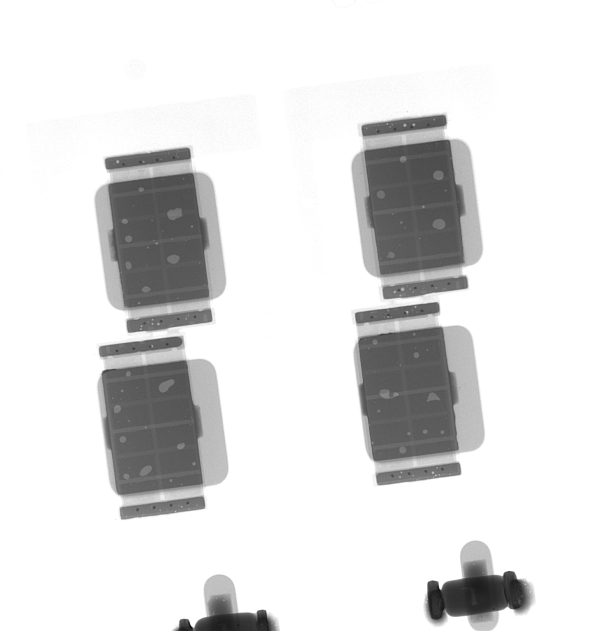

    LED Testing

  • The Project

    Note

    		 Quantity

    Microfocal ray source

    Installed on the device

    		 1

    FPD

    Installed on the device

    		 1

    The FPD data line

    Installed on the device

    		 1

    X ray device power supply cable

    Installed on the device

    		 1

    X light control cable

    Installed on the device

    		 1

    Load table

    Installed on the device

    		 1

    Motor control system

    Installed on the device

    		 2

    PC(includes power cables)

    Installed on the device

    		 1

    The Mouse

    Installed on the device

    		 1

    The Keyboard

    Installed on the device

    		 1

    XRaySystem image processing software

    Installed on the device

    		 1

    Operating manual

    Random distribution

    		 1

    A 22-inch display

    Installed on the device

    		 1

    AC 220V dedicated power cable

    Random distribution

    		 1

    Steady the pressure of the power supply

    Random distribution

    		 1

  • S100 Xray technical parameter table

    equipment type

    HF-S100

    main technical indicators

    X-ray tube

    X-ray tube type:Closed tube

    maximum voltage of X-ray tube: 130KV

    maximum current of X-ray tube: 300uA

    X-ray tube power: 39W

    detector

    detector type: high resolution digital flat panel detector (FPD)

    detector resolution: 5.8 lp/mm

    multi-angle detection function

    multi-angle detection function : x-ray tube + FPD concentric rotation, platform does not tilt in the horizontal direction

    maximum tilt angle of X-ray tube and FPD: 45°-60°

    platform

    loading platform size: 600mm × 600mm

    loading platform maximum bearing weight: 20KG

    machine parameters

    overall size of equipment: 1400mm (length) × 1550mm (width) × 1800mm (high)

    equipment weight: about 1500kg

    power supply: 220VAC, 50/60hz

    working environment: 0 ℃ ~ 40 ℃ / 30 ~ 85rh

    equipment power: 1.5KW

    software function

    image processing software: self-developed multifunctional image processing system

    software language: Chinese/English

    navigation system: high definition automatic navigation and real-time position tracking function, which can move to the test point accurately and quickly

    multi-point editing function: position editing can be carried out according to multi product measurement and the location can be saved. It can be called at any time later. More than 1000 models can be added and saved according to product requirements

    test point stepping NG and OK marking: when automatically testing according to the edited program, you can choose to move at regular intervals or conduct the next point test after personnel judge NG or OK, which can effectively prevent personnel from missing inspection

    record the position information of the judgment point according to different colors: when the automatic positioning test is carried out according to the edited program, the judgment results are marked with different colors on the simulated position map according to the judgment results of the operator, which is convenient for selection.

    software measurement function: hole calculation, three-point diameter measurement, parallel distance measurement, polygon measurement function

    software annotation function: arrow standard, text annotation standard

    level 3 permission management of software: administrator, engineer, operator

    radiation safety

    X-ray leakage: ＜ 1 μ Sv/h
